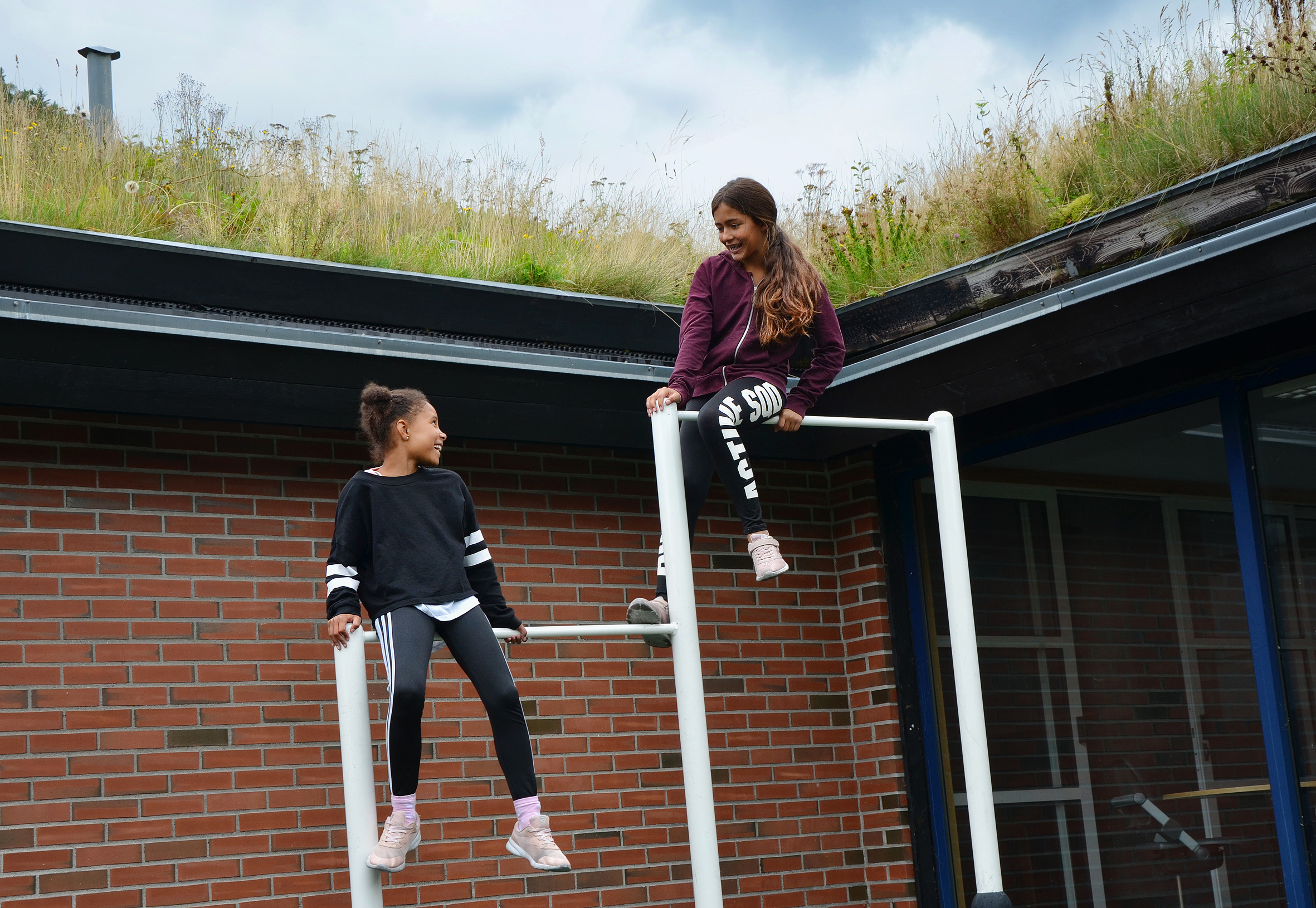

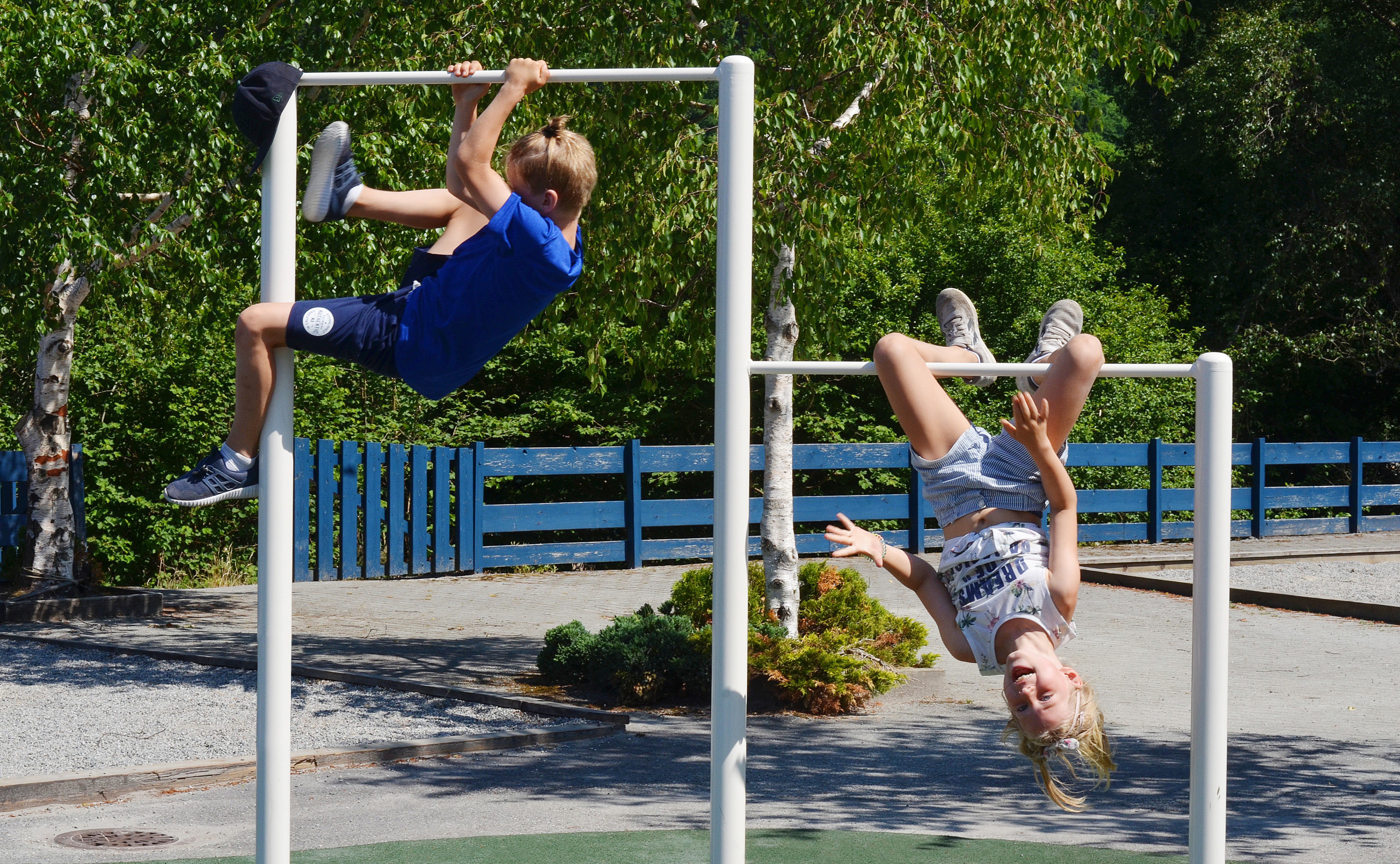

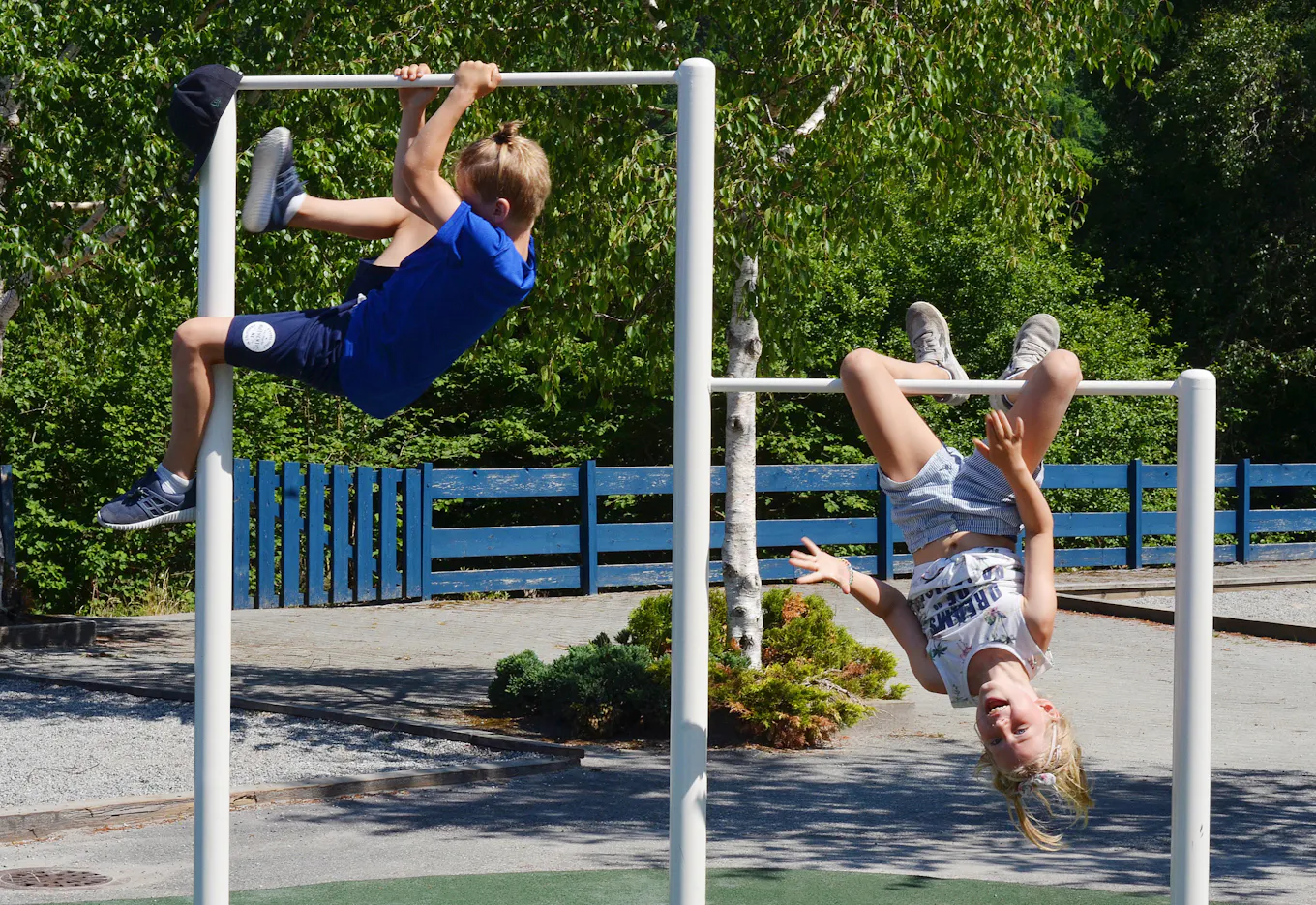

Rampit Swing™

MOUNTING ON DIFFERENT Ground covers

SUITABLE GROUND COVERS

• Rampit™Swing 200: Wet pour rubber/cork or artificial grass.
• Rampit™Swing 220: Wet pour rubber/cork or artificial grass as well as on loose-fill ground covers like sand or wood chips.
• Please specify the intended ground cover when enquiring and ordering.

Fall height

• Rampit™ Swing 200, on wet pour rubber/cork or artificial grass: 200 cm
• Rampit™ Swing 220, on wet pour rubber/cork or artificial grass: 220 cm
• Rampit™ Swing 220, on loose-fill ground covers like sand or wood chips: 200 cm

SAFETY AREA

• The safety area may overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)
• For Rampit Swing 200 a safety area within 183 cm from the higher bar and 150 cm from the lower bar is required. Regarding Rampit Swing 220 the measures are 197/157 cm.

(The illustration below shows the measures for Rampit Swing 200).

MATERIALS, QUALITY AND DURABILITY

• Designed for long-term outdoor use.
• Made of fully welded, hot galvanized steel.
• Powder coated with standard color RAL 9001 Creme (other colors are optional and are available for an addtional charge)
• Management, operations and maintenance documentation is provided at delivery.

Mounting

• The required thickness of concrete foundation is 15 cm.
• Delivered ready for mounting on a concrete foundation. Expansion bolts are included.
• Mounting time approx. 30 min for 1 person.
• Installation instructions are included.

SAFETY

• Manufactured in fully welded steel with rounded ends and no sharp edges. Dimensions are adapted to allow children’s hands to get a good grip.

PDF

• Rampit Swing_product sheet (pdf)
• Rampit Swing_mounting instructions (pdf)
• OEM_rampit (pdf)

Technical drawings

2D dwg (all sizes)

• RampitSwing_2D

3D dwg (all sizes)

• RampitSwing_3D for wet pour ground covers
• RampitSwing_3D for loose fill ground covers

3DS

• RampitSwing_3D
