Rampit Hopper™
An arrangement of activity bars and turning pads. The device increases your heart rate and challenges mobility, agility, and coordination. It works for both exercise and physical play, or why not have a casual competition with a friend – or with yourself?
Ready for fitness or play
The Rampit Hopper™ features 5 bars made of powder-coated steel, with a comfortable and easy-to-grip surface that invites intense activity. Standing at a height of 90 cm, it tempts you to move both over and under the bars. The inclined turning pads are covered with durable natural rubber and withstand powerful thrusts.
Specifications
Rampit HOPPER™ | fully welded activity Bars with turning pads
Mounted height: 90 cm
Width: 120 cm
materials, quality and durability
- Made of wholly welded, hot dip galvanised and powder coated steel.
- Delivered in standard color RAL 1002 Sand Yellow
- OAM is included.
Mounting and safety
Mounting on different Ground covers
Artificial grass or wet pour ground covers (rubber or cork)
Loose fill ground covers (wood chips, sand etc.)
Suitable ground covers
- Wet pour ground covers (cork, rubber), artificial grass, loose fill ground covers (sand or wood chips etc. – grass is not recommended).
- Please specify the type of ground cover that will be used when enquiring/ordering.
Fall height
- 90 cm

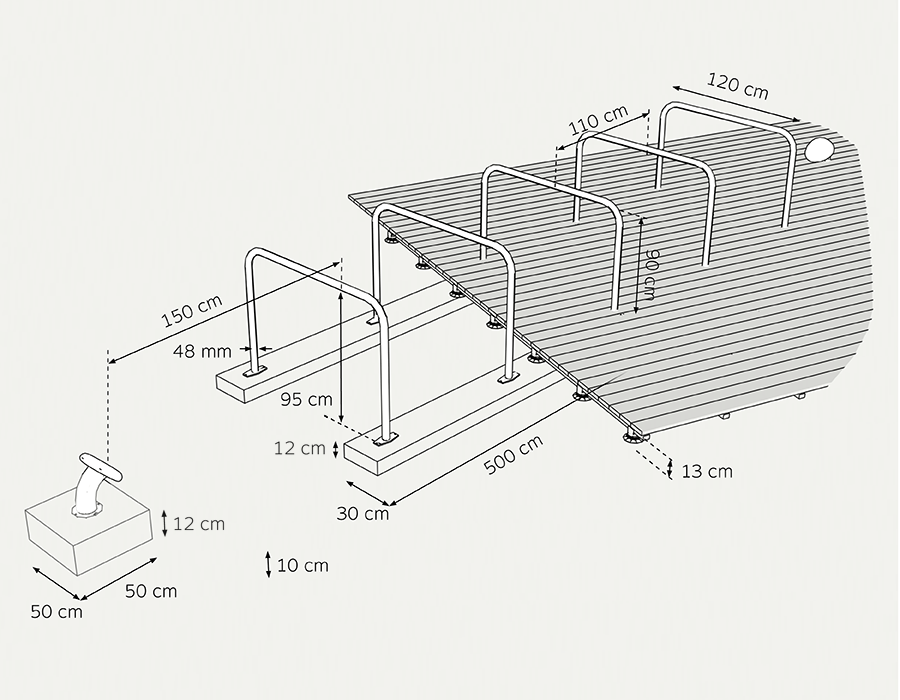

SAFETY AREA
- The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5).
- The safety area may overlap with the safety area of other equipment (ref NS EN 1176-1: 2017 / 4.2.8.2.5)
Mounting
- Delivered ready for mounting on a concrete foundation. Expansion bolts are included.
- The required thickness of the concrete foundation is 10 cm.
- Mounting time approx. 1h for 1 person.
- Installation instructions are included.
SAFETY
- Certified by TÜV according to:
– Playground equipment EN 1176-1:2017
– Permanently installed outdoor fitness equipment EN 16630 - The device has rounded corners and no sharp edges. Dimensions are adapted to allow children’s hands to get a good grip.
Downloads
Technical files
The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no
2D | DWG
3D | DWG
BIM | IFC
Training effect
Hopper™ offers training for mobility, gross motor skills as well as cardiac fitness.
Muscle groups:
Legs, arms and core muscles

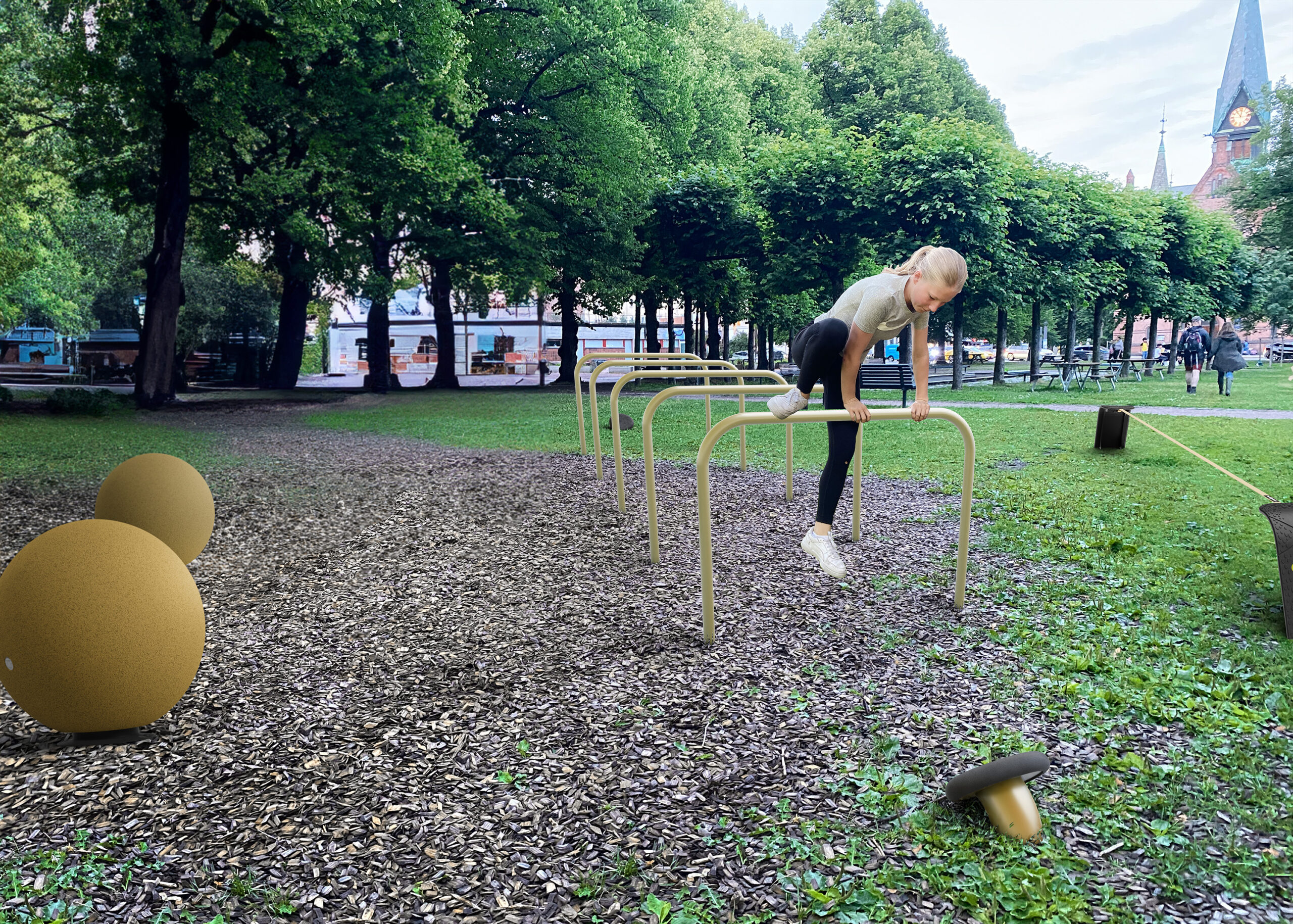

Exercise examples
Moving over and under the bars.
(> 1 minute)
