Jumpstone™

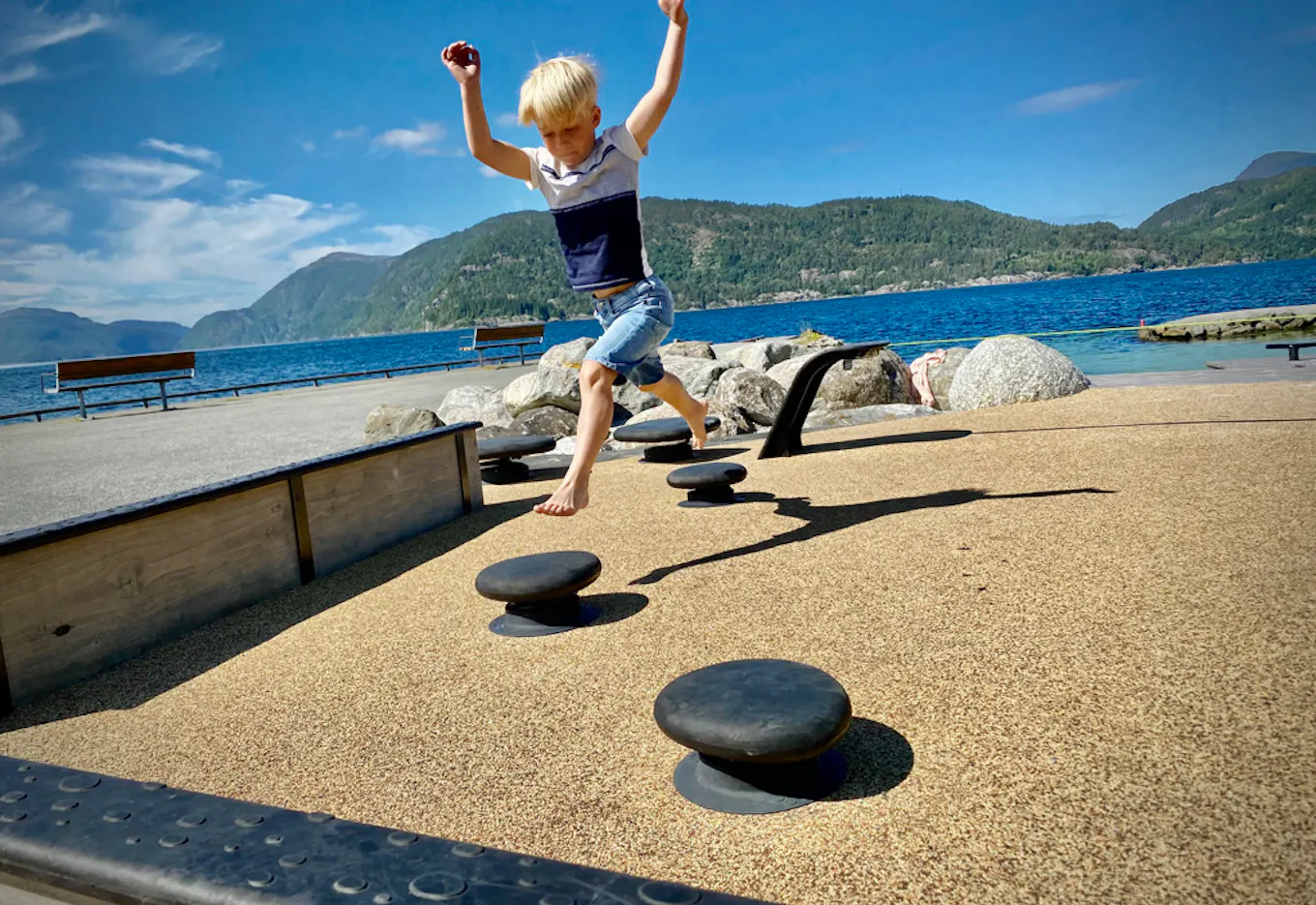

Jumpstone™ provides a wonderfully responsive feel as users jump from stone to stone, making it an ideal element in movement parks and movement courses. It inspires creative, active play while challenging balance, coordination and speed.
Jump on Soft Stones
Low height, a soft surface and a spring that responds naturally to movement make Jumpstone™ uniquely safe – even during fast-paced, adventurous play. Arrange them in trails or combine them with other equipment to create exciting movement sequences, varied challenges and endless opportunities for play.
- Available in 27 cm and 50 cm sizes
Specifications
Jumpstone™ | Bouncing rubber jump pad
Jumpstone™ 27
Diameter: 27 cm
Height: 18 cm
Weight: 8 kg
Jumpstone™ 50
Diameter: 50 cm
Height: 18 cm
Weight: 20 kg
MATERIALS, QUALITY AND DURABILITY
- All parts are designed for long-term outdoor use.
- All steel components (spring, attachment plate etc.) are hot-galvanized and/or powder coated.
- The pad is made of natural rubber.
- A flange of natural rubber covers the spring and mounting hole.
- Operations, administration and maintenance documentation is provided at delivery.
Mounting and safety
Mounting on different Ground covers
Artificial grass/wet pour covers (cork or rubber)
Grass/loose-fill ground covers (wood chips, sand, etc.)
SUITABLE GROUND COVERS
- Wet pour ground covers, artificial grass, grass, sand, wood chips.
- Firm ground covers (e.g. paving stiones or wood deck) can also be used. In the case of firm ground covers an overall safety assessment of the playground should be made.
- Please specify the intended ground cover when ordering or enquiring.
SAFETY AREA
- The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5)
- The safety area can overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)
- Several Jumpstone™ can be installed in close proximity to each other in trails, obstacle courses or clusters (ref EN 1176-1: 2017 / 3.20)
Fall height
- 18 cm
MOUNTING
- Delivered ready for mounting on a concrete foundation. Expansion bolts are included.
- When mounted on grass (21.5 cm depth) and loose-fill ground covers (30 cm depth) an extender will be needed to allow for a lower placement of the foundation.
- The required thickness of the concrete foundation is 20 cm. When the foundation for multiple units is casted as one piece the required thickness is 15 cm.
- Mounting time approx. 30 min for 1 person.
- Installation instructions are included.
SAFETY
- Certified by TÜV according to:
– Playground equipment EN 1176-1:2017
– Permanently installed outdoor fitness equipment EN 16630 - To avoid potential pinching the spring is protected with a rubber flange.
Downloads
Mounting instructions
Technical files
The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no
2D | DWG
3D | DWG
BIM | IFC
training effect
Jumpstone™ provides training for explosive strength,
foot-eye coordination and balance skills.
Muscle groups:
Leg and core muscles.
Exercise examples:
– Jump from pad to pad.
– Try to increase pace and make longer jumps.
(> 30 seconds)
