Rampit™

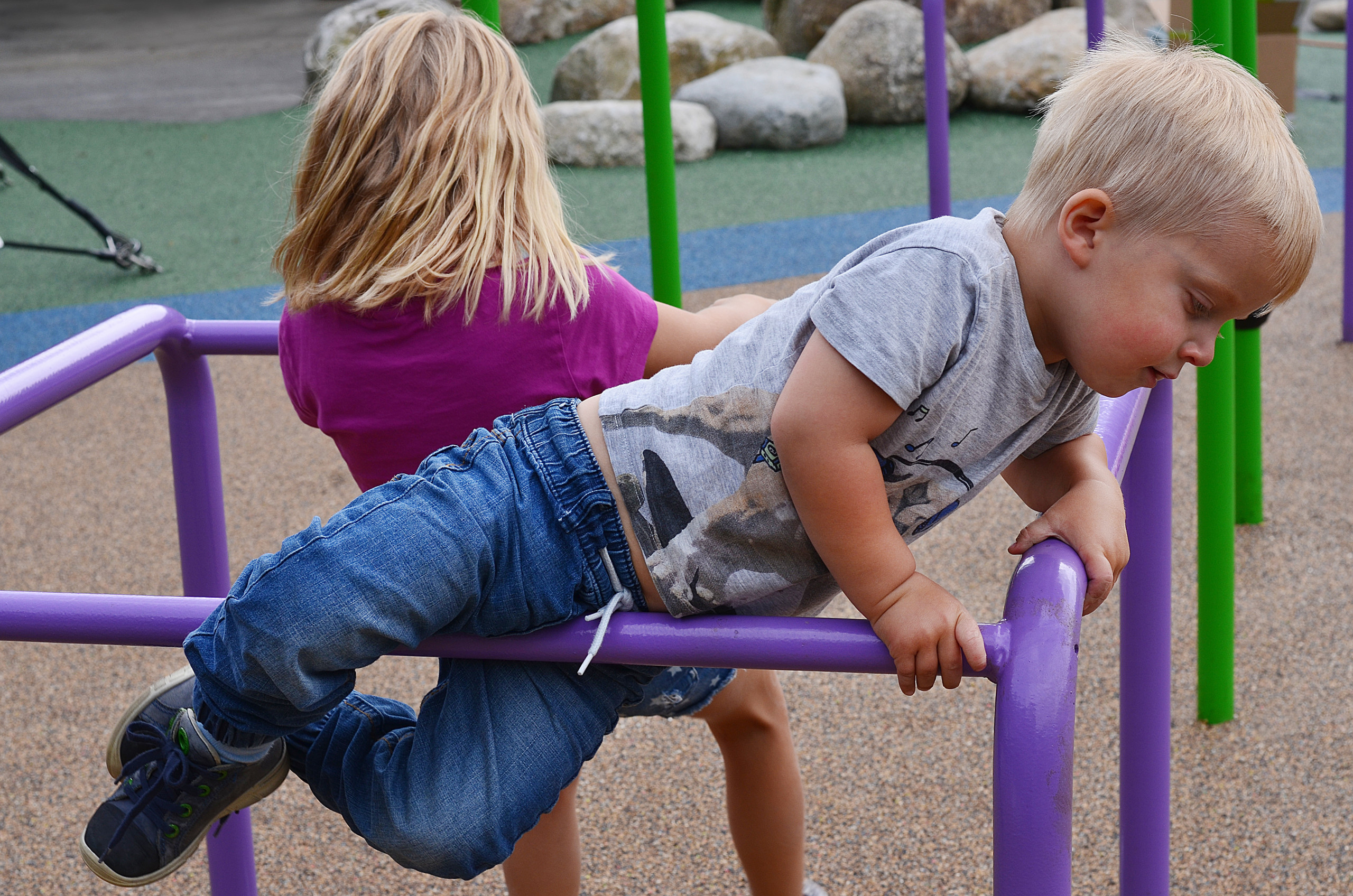

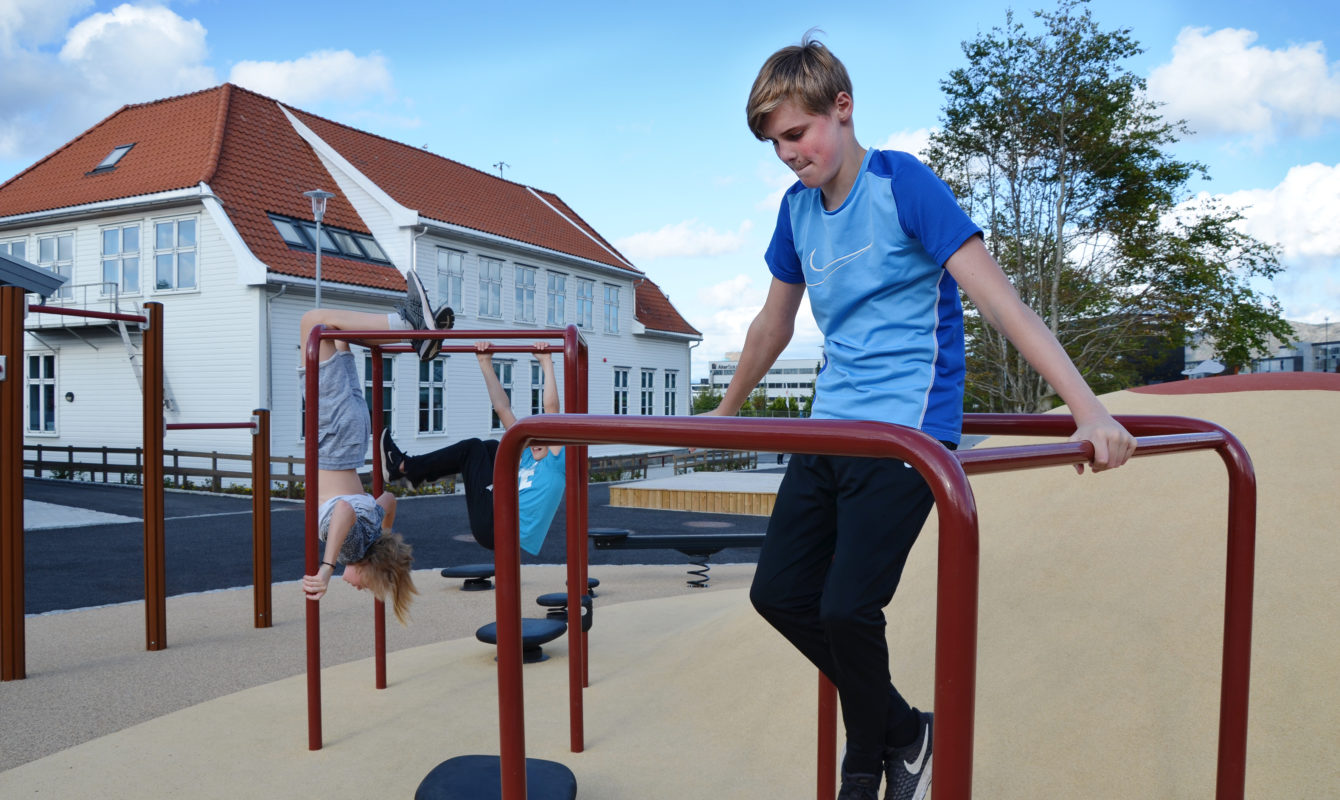

The Rampit™ activity frame can be used in countless ways, inviting varied and challenging activity. Through play, children practise supporting their own body weight while hanging, swinging and climbing. Moving in different directions and body positions challenges balance, coordination, spatial awareness and core stability.
ONE DEVICE – A MULTITUDE OF MOVEMENTS
Rampit™ is a high quality activity rack with a smooth surface and with dimensions adapted to provide good grip for children’s hands. Rampit™ is excellent for developing classic gymnastic skills as well as for creative movement. It can also be used for fitness activities for children, youth and adults.
- Fully welded and power coated
- Standard colours: RAL 6011 Reseda green or RAL 9001 Creme
Specifications
Rampit™ | fully welded multi activity rack
Rampit™ 85
Mounted height on wet pour ground covers or artificial grass: 85 cm
Not suitable for loose fills.
Width: 100 cm
Standard colour: RAL 6011 Reseda green
Rampit™ 120
Height:
– on wet pour ground covers or artificial grass: 120 cm
– on grass/ loose fills: 95 cm
Width: 100 cm
Depth: 95 cm
Weight: 36 kg
Standard colour: RAL 6011 Reseda green
Rampit™ 150
Height:
– on wet pour ground covers or artificial grass: 150 cm
– on loose fills: 126 cm
Width: 100 cm
Depth: 95 cm
Weight: 40 kg
Standard colour: RAL 9001 Creme
materials, quality and durability
- Rampit™ activity rack is made of wholly welded, hot dip galvanised and powder coated steel.
- Delivered in standard colors i RAL 6011 Reseda green or RAL 9001 Creme. Other colors are optional.
- OAM is included.
Mounting and safety
Mounting on different Ground covers
Artificial grass or wet pour ground covers (rubber or cork)

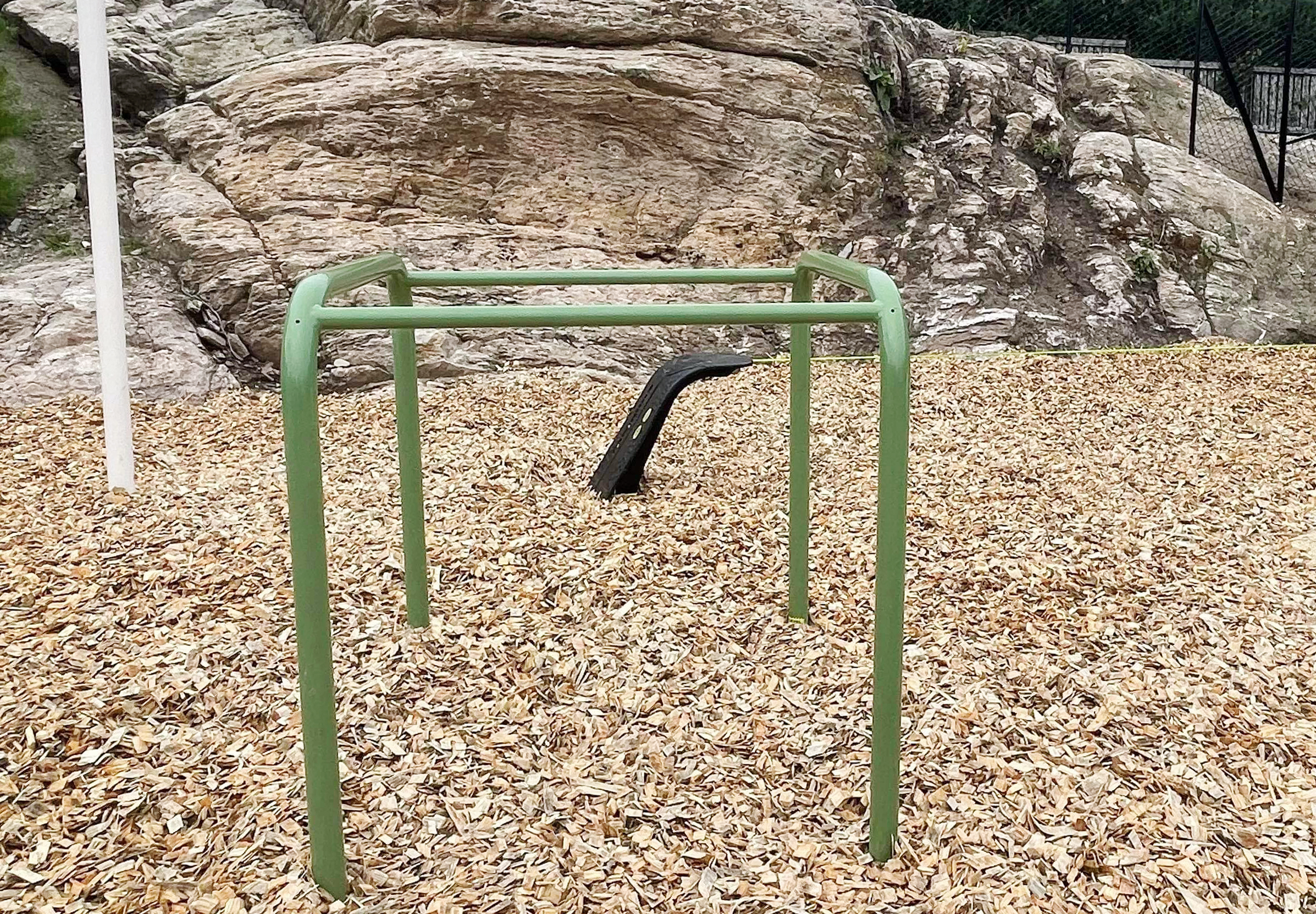

Loose fill ground covers (wood chips, sand etc.)
Suitable ground covers
- Rampit™ 85: Wet pour ground covers (cork, rubber), artificial grass.
- Rampit™ 120 and 150: Wet pour ground covers (cork, rubber), artificial grass, loose fill ground covers (sand or wood chips etc. – grass is not recommended).
- Please specify the type of ground cover that will be used when enquiring/ordering.
Fall height
- Rampit 85, on wet pour ground covers, artificial grass: 85 cm
- Rampit 120, on wet pour ground covers, artificial grass: 120 cm
- Rampit 120, on loose fill ground covers (sand or wood chips etc.): 95 cm
- Rampit 150, on wet pour ground covers, artificial grass: 150 cm
- Rampit 150, on loose fill ground covers (sand or wood chips etc.): 125 cm
SAFETY AREA
- The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5).
- The safety area may overlap with the safety area of other equipment (ref NS EN 1176-1: 2017 / 4.2.8.2.5)
- Multiple Rampit™ can be placed in a group with minimum distance of 23 cm, however a minimum of 60 cm is recommended.
Mounting
- Delivered ready for mounting on a concrete foundation. Expansion bolts are included.
- The required thickness of the concrete foundation is 15 cm.
- Mounting time approx. 15 min for 1 person.
- Installation instructions are included.
SAFETY
- Certified by TÜV according to:
– Playground equipment EN 1176-1:2017
– Permanently installed outdoor fitness equipment EN 16630 - Rampit™ has rounded corners and no sharp edges. Dimensions are adapted to allow children’s hands to get a good grip.
Downloads
Technical files
The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no
2D | DWG
3D | DWG
BIM | IFC
training effect
Rampit™ provides training for mobility and gross motor skills.
At high intensity: Coordination and cardiovascular fitness.
Muscle groups:
Leg, back, arm and core muscles.
Exercise examples:
– Dips (3 sets)
– Pull-ups with feet on the ground (3 sets)
– Jumping into the rack, moving out – repeat (30 sec)
