Rampit Storm™

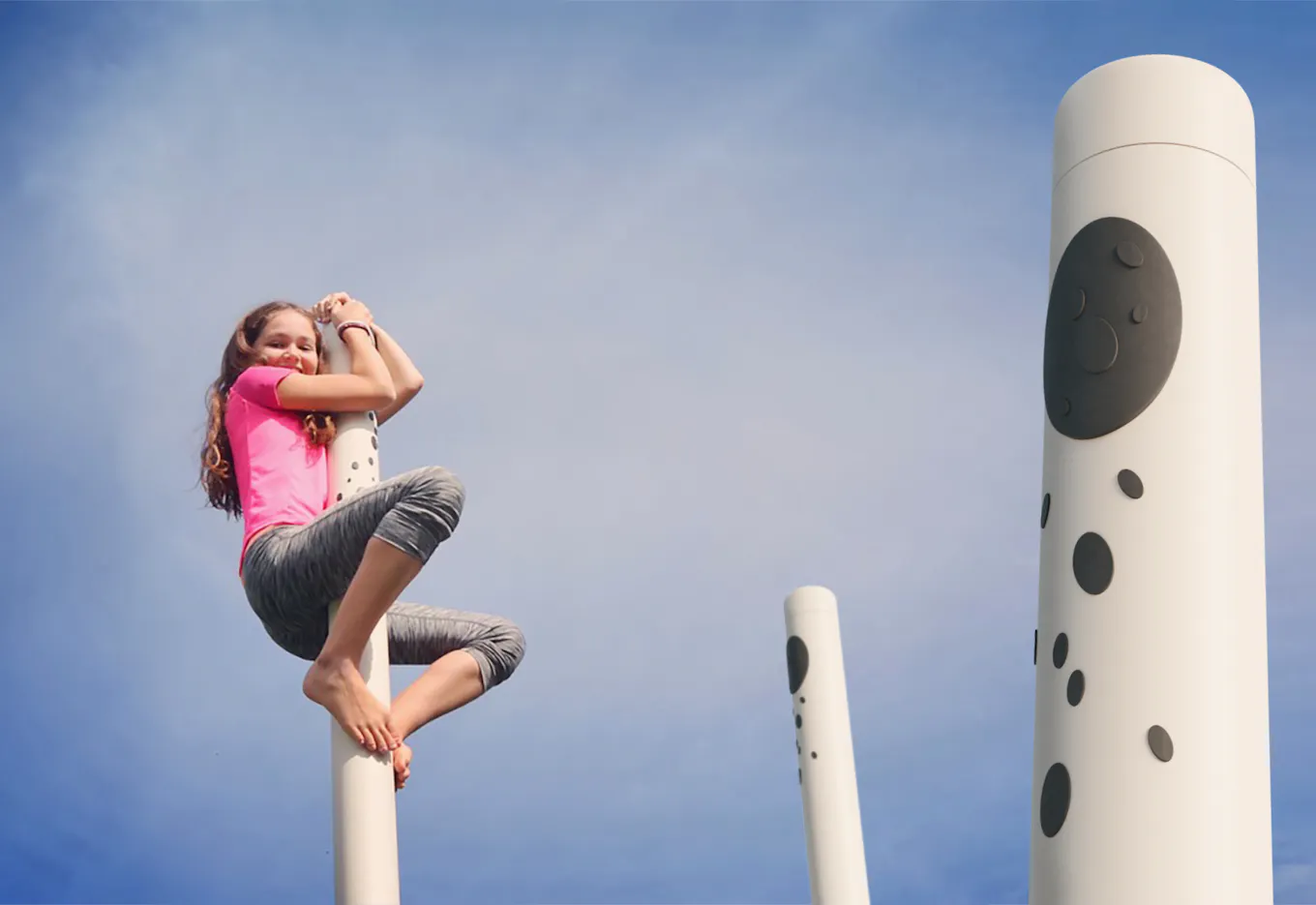

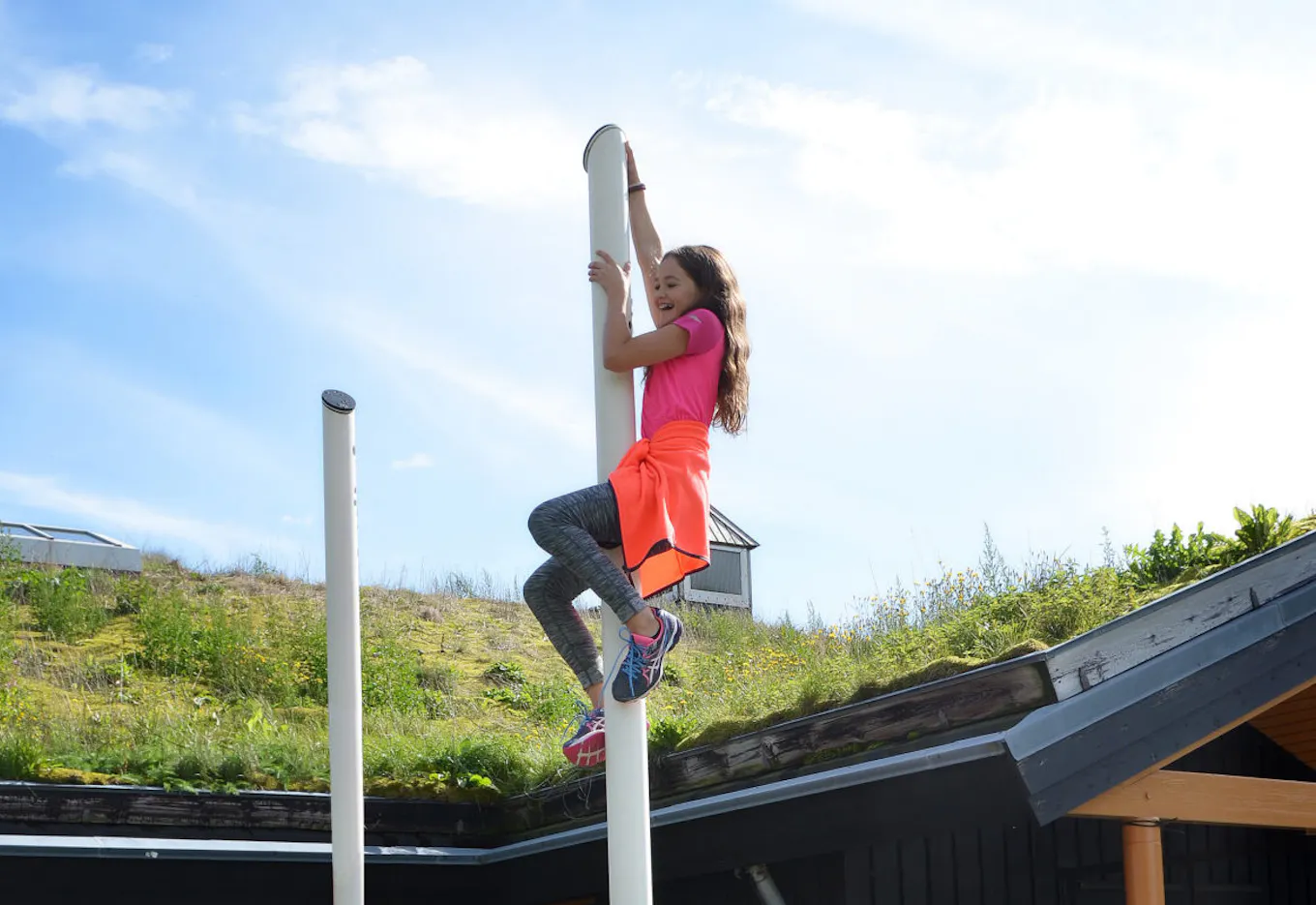

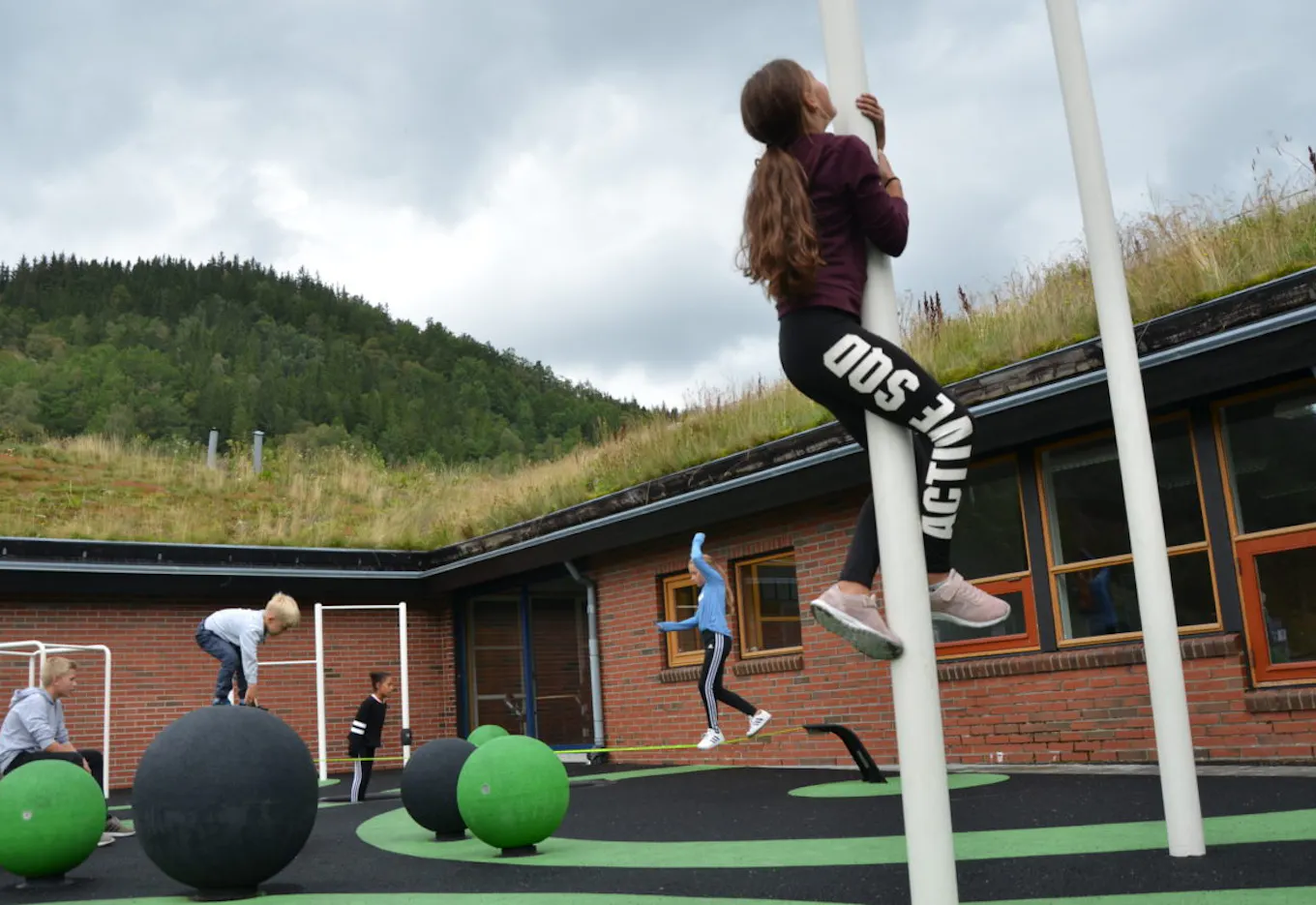

The Rampit Storm™ climbing pole triggers our instinctive urge to get to the top. Climbing the Rampit Storm™ requires a little technique, courage and strength, but it is something that everyone can master with a little training.
SOMETHING TO STRIVE FOR
Rampit Storm™ is an excellent device for play, competition and climbing exercises and suitable for children and youth from school age. Rampit Storm™ is safe to use, and challenges all users to reach the top and hit the bell.
- Made of powder coated stainless steel
- Mechanical sound generator (bell) at the top
- Smooth powder coated surface
- 400 cm height
Specifications
Rampit Storm™ | Climbing pole with mechanical sound generator
Diameter: 10,3 cm
Height:
– mounted on wet pour ground covers: 400 cm
– mounted on loose fill ground covers: 373 cm
weight: 50 kg
MATERIALS, QUALITY AND DURABILITY
- Designed for long-term outdoor use.
- Made of fully welded, stainless steel. The sound generator (bell) is activated by a push plate of natural rubber.
- Powder coated with standard color RAL 9001 Creme (other colors are optional and are available for an addtional charge)
- Management, operations and maintenance documentation is provided at delivery.
Mounting and safety
Mounting on different Ground covers
Wet pour ground cover (rubber, cork)
Loose-fill ground covers (wood chips, sand etc.)
Suitable ground covers
- Wet pour ground covers (rubber, cork etc.)
- Loose-fill ground covers (sand, wood chips etc.)
Fall height
- 300cm
SAFETY AREA
- The required extent of the safety area around the equipment is 200 cm (ref EN 1176-1: 2017 / 4.2.8.2.5).
- Multiple Rampit Storm™ may share the same safety area. The required distance between units is 150 cm.
Mounting
- An anchor is cast-in-place when casting the concrete foundation. The device is mounted to the anchor with bolts.
- The required thickness of the concrete foundation is 30 cm.
- Mounting time approx. 30 min for 1 person.
- Installation instructions are included.
SAFETY
- Certified by TÜV according to:
– Playground equipment EN 1176-1:2017
– Permanently installed outdoor fitness equipment EN 16630 - The is fully welded steel with no sharp edges.
- Rampit Storm™ has no features that may force the user away from the pole. No horizontal movement can occur.
Downloads
Technical files
The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no
2D | DWG
3D | DWG
BIM | IFC
TRAINING effeCt
Rampit Storm™ provides training for coordination skills and cardiovascular fitness.
Muscle groups:
Arm, back, abdominal and leg muscles
Exercise example:
Climbing the pole by pinching with the legs
(30 seconds)
