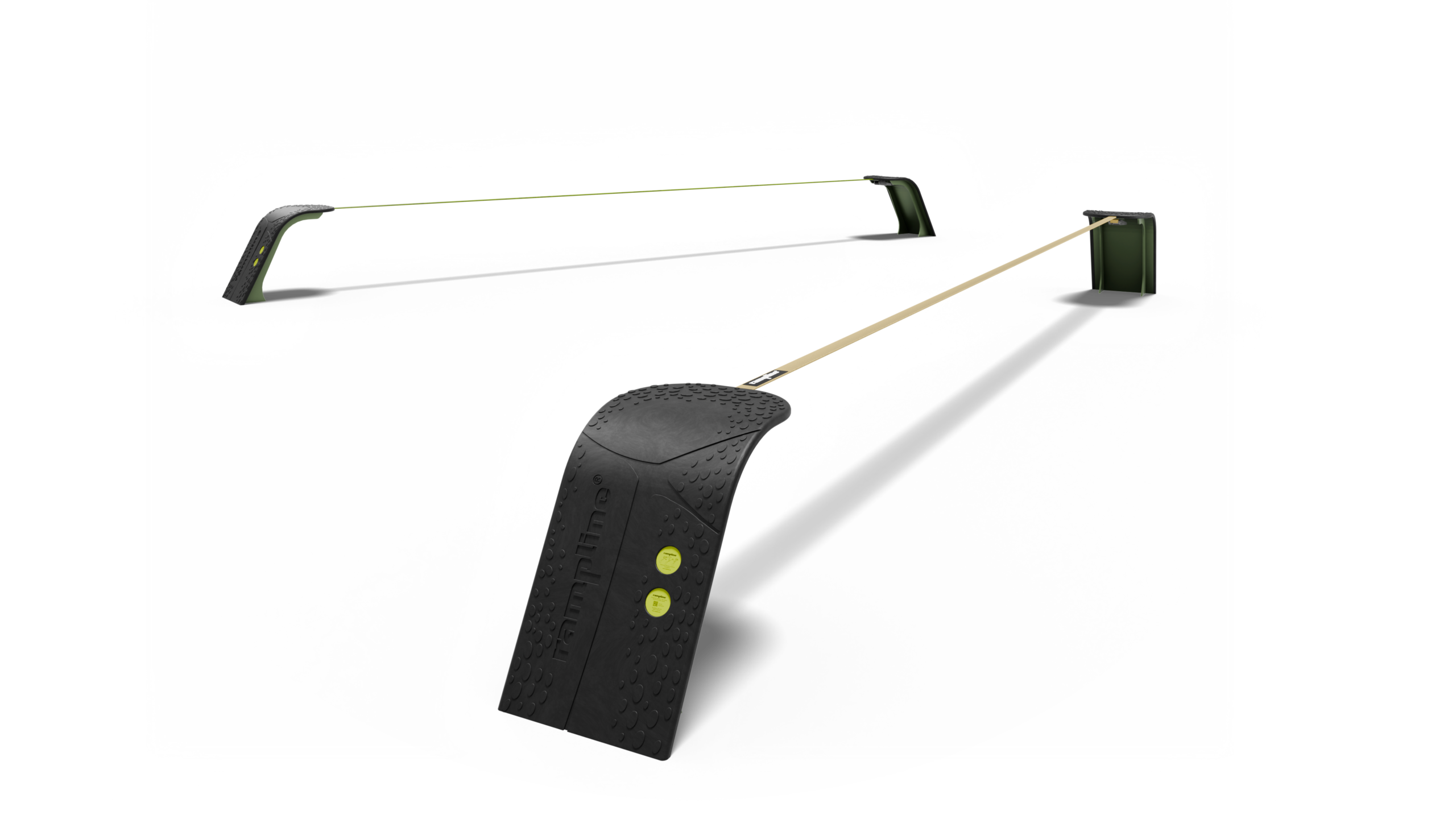

Rampline^® slackline

Artificial grass/wet pour ground covers (rubber, cork etc.)

Grass/loose-fill ground covers (wood chips, sand etc.)

ShockDeck™

Suitable ground covers

• Wet pour ground covers, artificial grass, grass, sand, wood chips or ShockDeck™
• Please specify the intended ground cover when enquiring and ordering.

fall height

• 100 cm

SAFETY AREA AND DISTANCES

• The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5).
• A part of the safety area (gray area in the drawing below) requires shock absorbing ground cover approved for a critical fall height of 100 cm.
• Multiple Rampline® slackline stands can be placed as a group in accordance with EN 1176-1: 2017 / 3.20. Required minimum distance between the lines is 150 cm.
• The safety area can overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)

Figure below: Total safety area (A) as well as the part of the safety area that requires a shock absorbing ground cover (B). Measurements in cm.

Mounting

• Rampline® slackline stand is delivered ready for mounting on concrete foundations. Expansion bolts are included.
• For mounting on grass and loose fill an extended version is delivered allowing for a deeper placement of the foundations.
• The required thickness of the concrete foundations is 15 cm.
• The foundations can be cast as one continuous slab.
• Mounting time approx. 45 min, 2 persons.
• Installation instructions are included.

SAFETY

• Certified by TÜV according to:
  – Playground equipment EN 1176-1:2017
  – Permanently installed outdoor fitness equipment EN 16630
• The device is padded with natural rubber and has no sharp edges.
• The height of the line is 45 cm above ground level. Due to the dynamic webbing a shock absorbing ground cover is required approved for a 100 cm fall height.
• The webbing is dynamic and poses minimal risk of injury if you should fall on it.
• The ramps are designed to withstand the weight of grown ups jumping and balancing on the line. No danger to the user can occur in the case of if the webbing has become loose, cut or broken, or if parts of the tension system are damaged.
• For safety to be guaranteed mounting instructions must be followed.

Webbing replacement

• Earlier Rampline® Slackline-models may be equipped with a PVC-covered polyester webbing. This webbing may have to be replaced once a year or once every second year depending on wear.
• A worn webbing will not endanger safety but may result in a poor user experience.
• To ensure a good user experience the webbing must be kept tight.
• Contact Rampline for ordering spare webbings.

PDF

Mounting instructions

Technical files

The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no

2D | DWG

3D | DWG

BIM | IFC
