Rampbow™
To truly master the Rampbow™, the user must combine balance and agility, strength and speed. This is a safe but challenging piece of equipment, which also looks nice and inviting in the activity area.
physical Activity with a great span
The long slanted arch challenges users at all levels to climbing and jumping movements as well as creative balancing activities. The height of 106 cm makes the Rampbow both exciting and challenging.
- Manufactured from heavy-duty stainless steel
- Powder-coated finish that’s kind to bare skin
Specifications

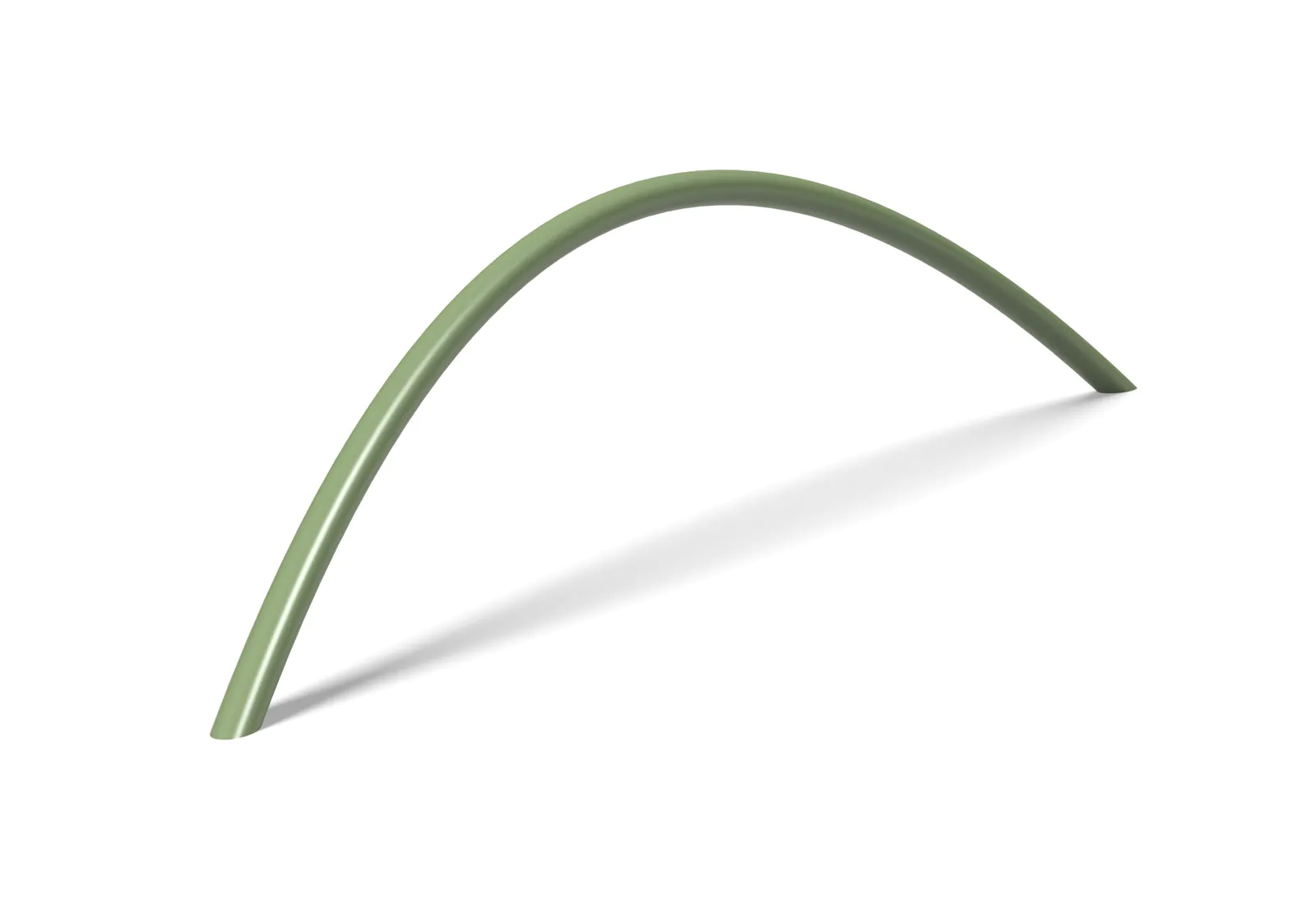

Rampbow™ | balance arch of powder coated stainless steel
Length: 532 cm
Height: 106 cm (Placed on grass the maximum allowed height is 100 cm. This is obtained by heighten the ground level slightly under the center of the arch.)
Weight:
– Rampbow for wet pour ground covers or artificial grass
– Rampbow for grass or loose fill ground covers
MATERIALS, QUALITY AND DURABILITY
- Made of wholly welded and powder coated stainless steel
- Delivered in standard colour RAL 6011 Reseda green. Custom colours are optional.
- OAM is provided at delivery
Mounting and safety
MOUNTING ON DIFFERENT GROUND COVERS
Artificial grass or wet pour ground covers (rubber/cork etc.)
Grass* or loose-fill covers

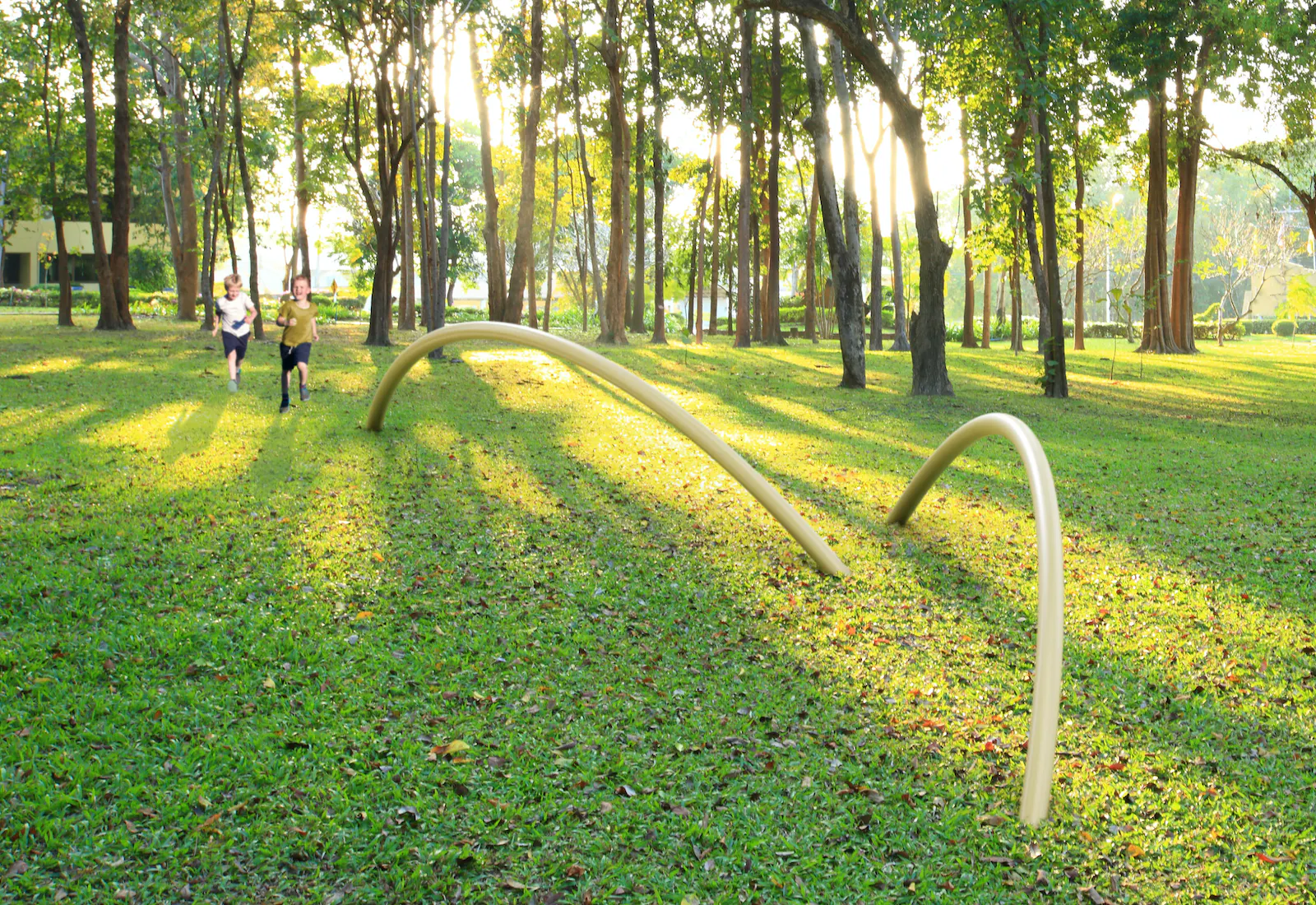

Mirrored setup

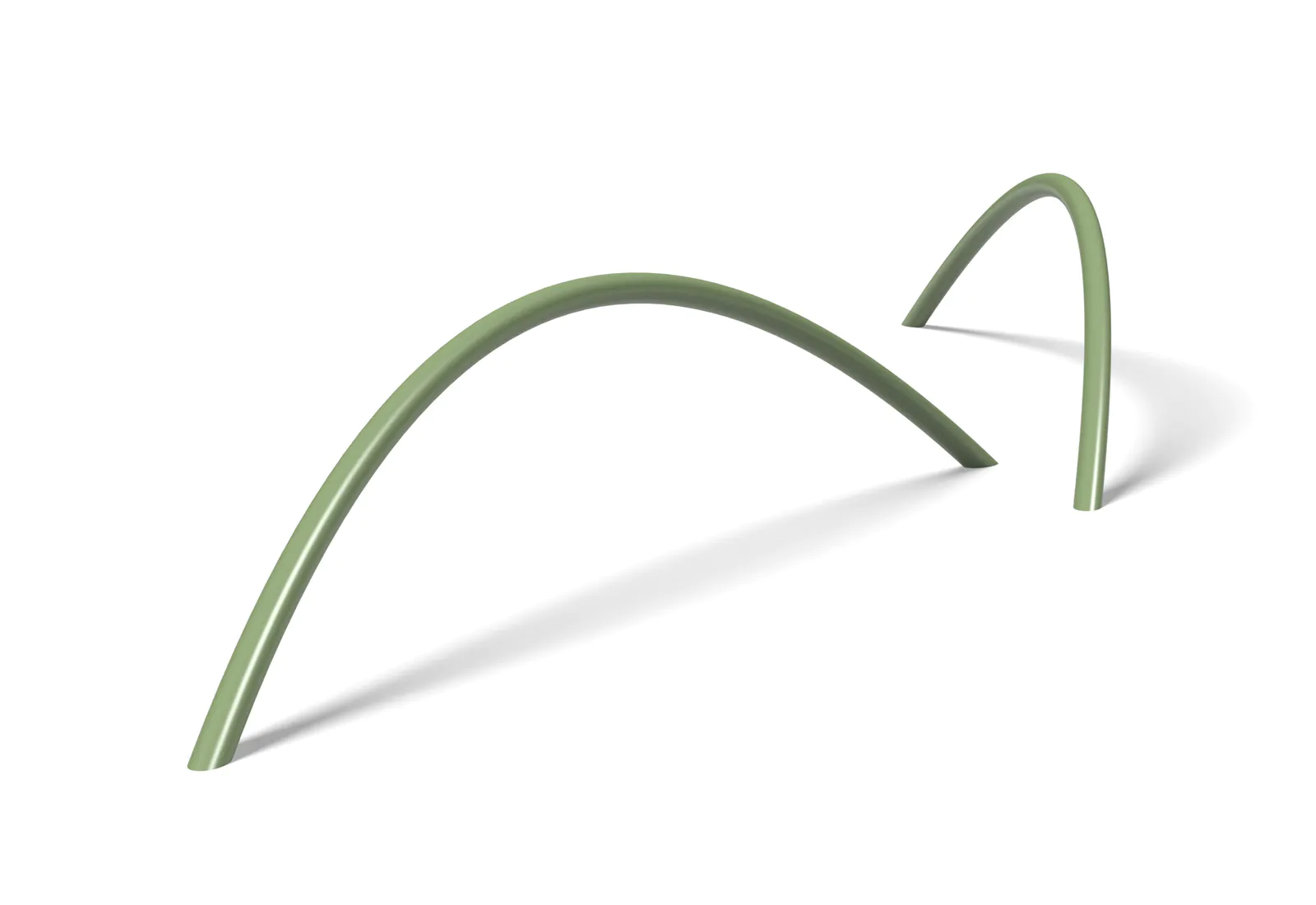

Serial setup
SUITABLE GROUND COVERS
- Wet pour ground covers, artificial grass, grass*, sand, wood chips etc.
- Please specify the intended ground cover when ordering or enquiring.
Fall height
- 106 cm (mounted on grass* 100 cm*)
*When placed on grass the maximum allowed height is 100 cm. This is obtained by heighten the ground level slightly under the center of the arch.
SAFETY AREA
- The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5)
- The safety area can overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)
MOUNTING
- Delivered ready for mounting on a concrete foundation. Expansion bolts are included.
- Mounting time for one arch 30 min, 2 persons
- Mounting instructions are included.
Safety
- Certified by TÜV according to:
– Playground equipment EN 1176-1:2017
– Permanently installed outdoor fitness equipment EN 16630 - The device has no sharp edges or corners
Downloads
Technical files
The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no
2D | DWG
3D | DWG
BIM | IFC
Training effect
Rampbow™ provides training for coordination and balance skills.
Muscle groups:
Thigh, leg and core muscles
Exercise examples
– Balancing back and forth on the arch
– Jump from arch to arch
(> 1 minute)
