Kids Tramp Trampolines

Rampline’s Kids Tramp Playground trampoline models

Loop
Jumping Mat: ø 96 cm
Steel Frame: 150x150x30 cm
Weight: 113 kg (excluding PlayPro™)
Weight PlayPro™: 9 kg

Square
Jumping Mat: 98 cm x 98 cm
Steel Frame: 150x150x30 cm
Weight: 113 kg (excluding PlayPro™)
Weight PlayPro™: 8 kg

The stated jumping mat dimensions are measured between the inside edges with the PlayPro™ installed.

Materials, Quality and Durability

• The frame structure is made from robust hot-dip galvanised steel.
• The jumping mat features integrated steel cable reinforcement for vandal resistance.
• The jumping mat is made from rubber-coated nylon. The rubber coating provides exceptional durability and reduces the size of the openings in the mat, helping to minimise the amount of debris that collects inside the trampoline.
• The jumping mat is lightweight and soft, providing a comfortable user experience, even for the youngest children.
• The PlayPro™ trampoline edge is made from durable natural rubber and provides a robust, smooth and integrated transition between the trampoline frame and the surrounding impact-absorbing surfacing.
• Operation and Maintenance Manual included with the product
• Replacement parts are available from Rampline

Mounting in different Ground covers

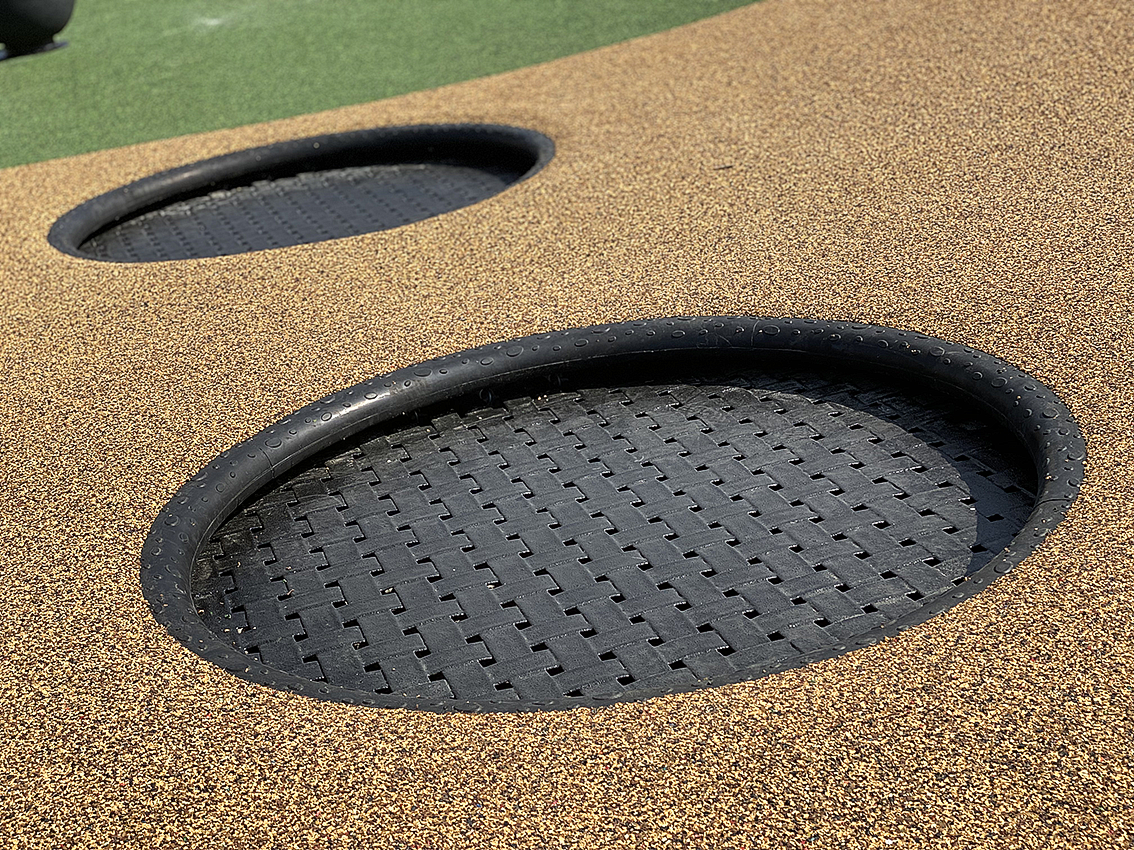

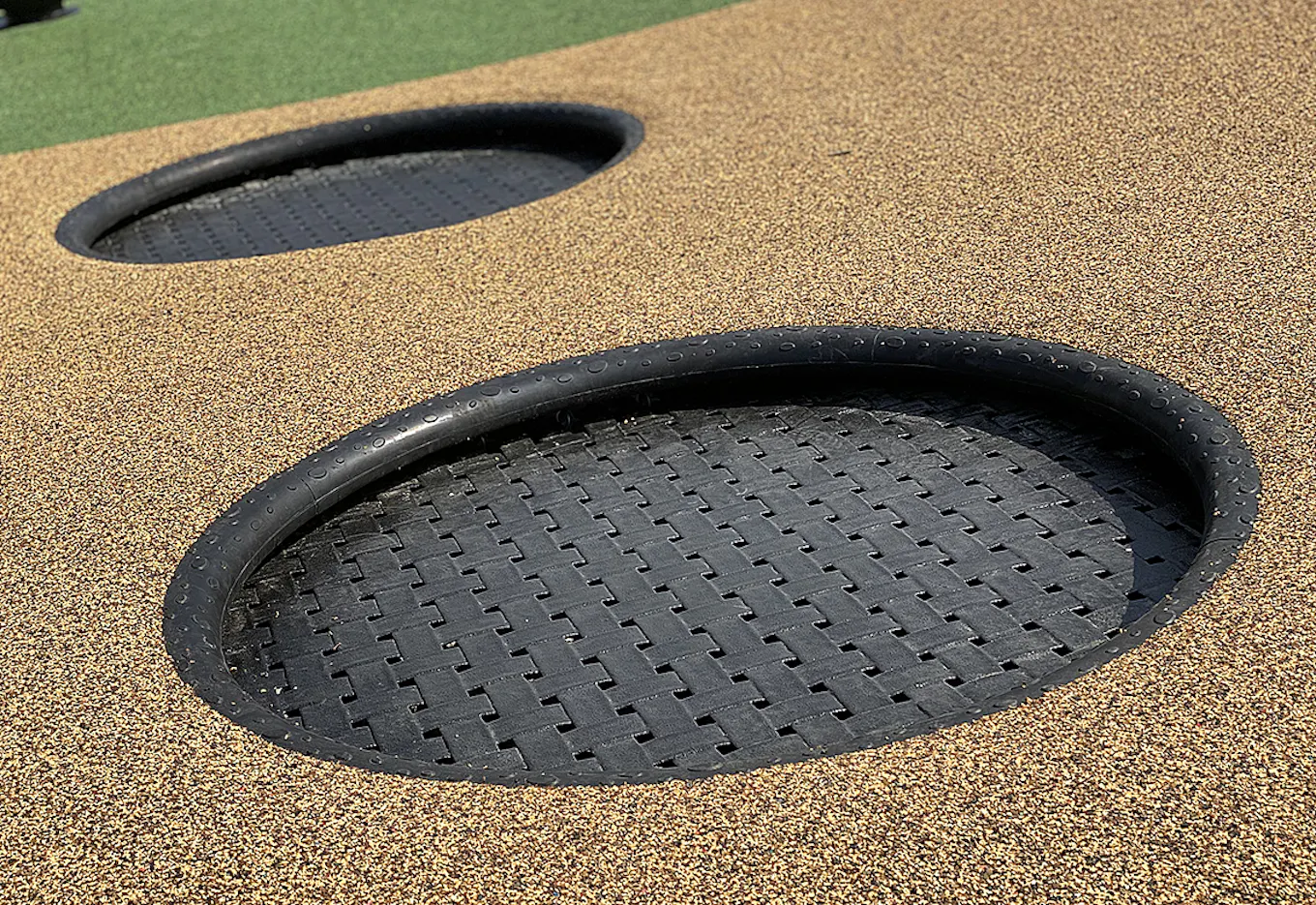

Wet pour ground covers (rubber, cork)

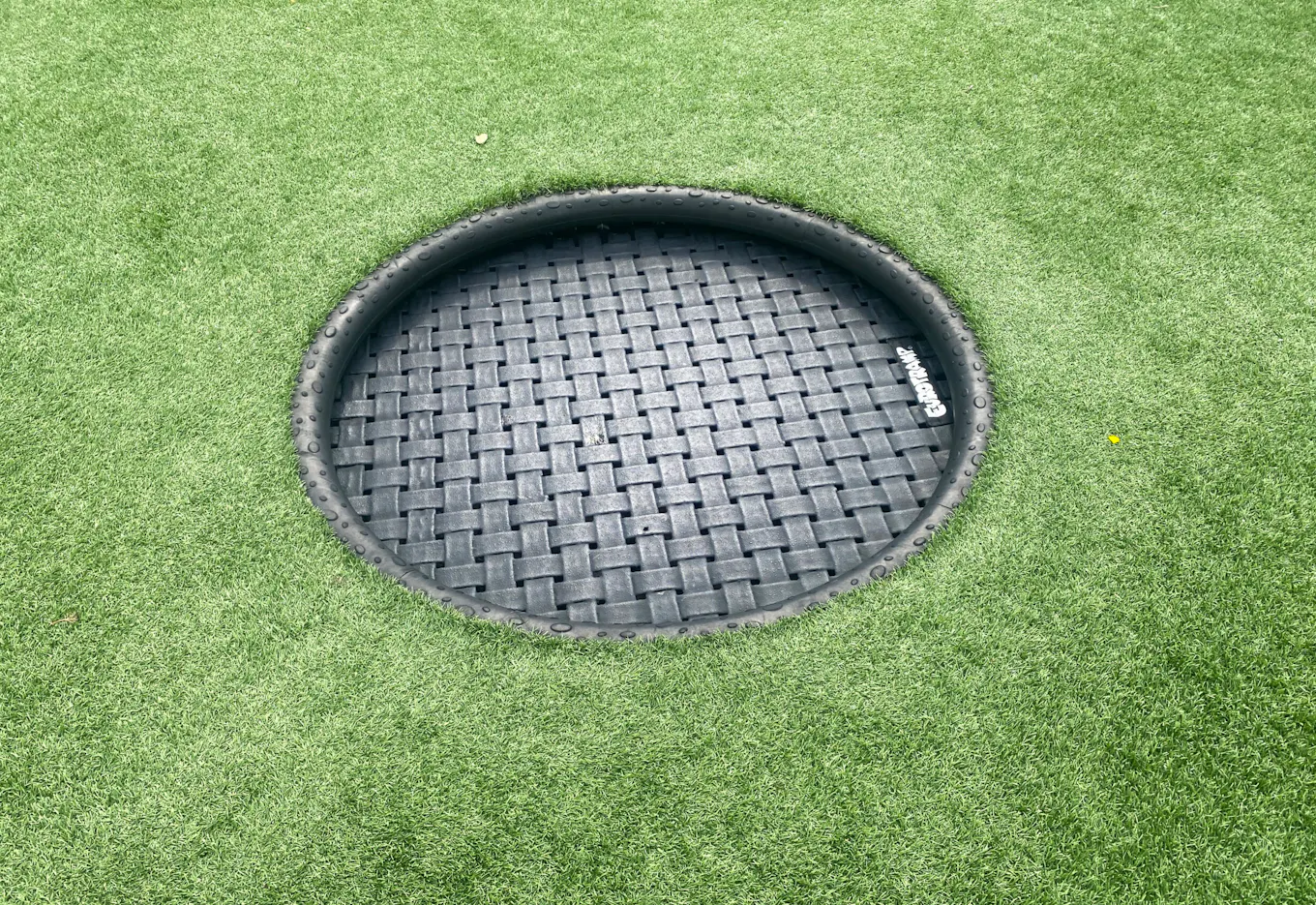

Artificial turf

ShockDeck™

Grass (combined with wet pour ground covers)

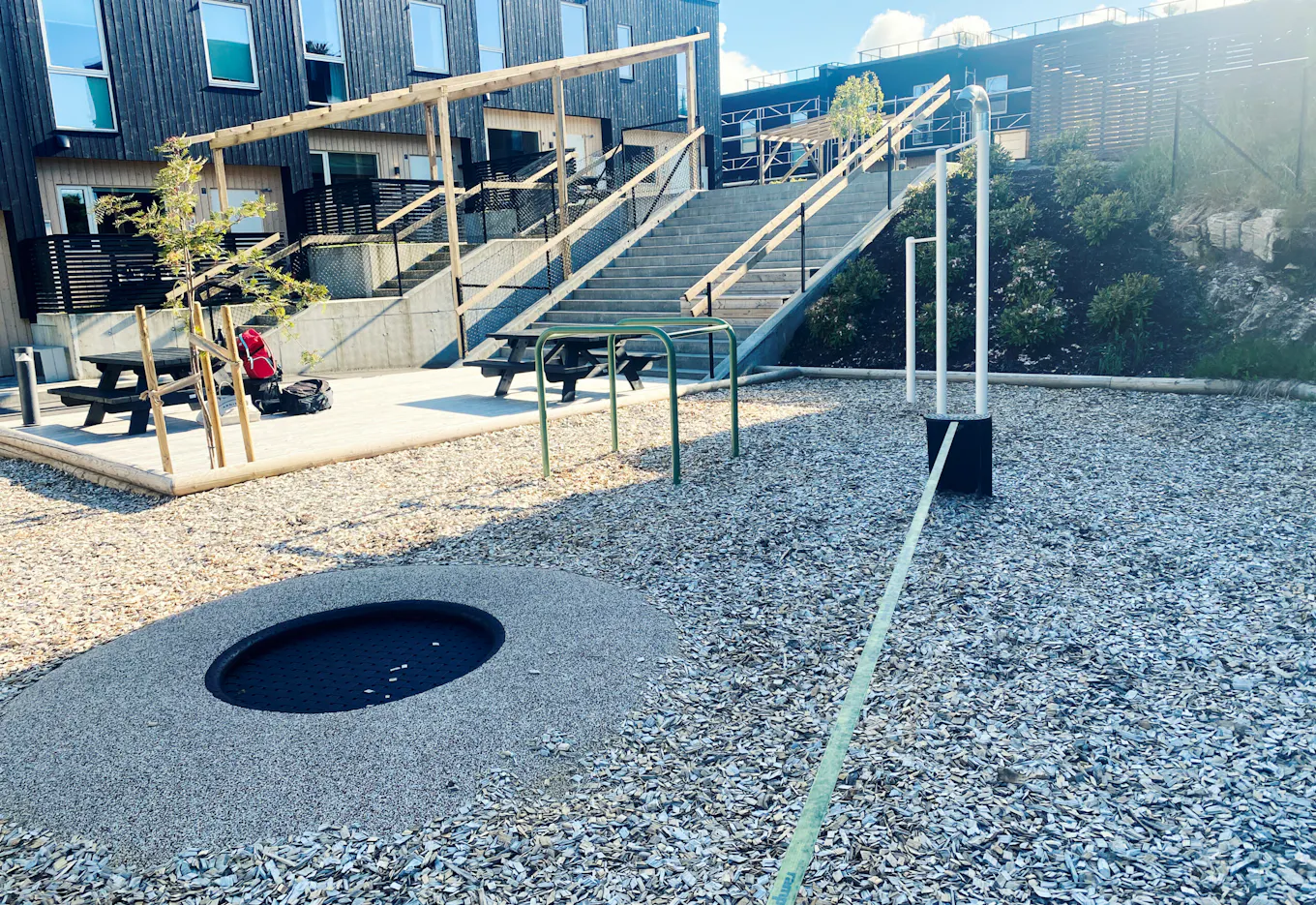

Loose-fill surfacing (combined with wet pour ground covers)

Safety

• Certified according to EN 1176-1:2017
• Critical Fall Height 100 cm
• Impact-absorbing surfacing certified for a critical fall height of 1.0 m is required.

Safety Zones and Impact Areas

• Impact-Absorbing Surfacing certified for a critical fall height of 100 cm is required.
• Rampline recommends a 200 cm safety zone (the area surrounding the equipment that must remain free of obstacles).
• A minimum clear space of 350 cm above the trampoline is recommended.
• The trampoline may share its safety zone with other playground equipment in accordance with EN 1176-1:2017.
  There is no minimum distance requirement between trampoline frames.
• The standard further states that the impact area shall be extended to 300 cm where the user has a predetermined direction of movement when leaving the jumping mat.
• The manufacturer Eurotramp states that if there is a specified direction of movement, a safety area at least 300 cm long shall be provided on the sides used for entering and exiting the trampoline. Eurotramp illustrates this by showing that trampolines installed in a row shall have an extended safety area.
• Rampline takes the view that the requirement to extend the impact area for trampolines installed in rows or groups does not apply to the Loop and Square models, as these are classified as small bouncing devices (jumping mat area less than 1.44 m²) in accordance with EN 1176-1:2017.
  Rampline AS always carries out a risk assessment when designing and installing trampolines in our motor skills parks.

Mounting

• The trampoline is delivered ready for in-ground mounting on a compacted base layer.
• No concrete foundation is needed if the base is thoroughly compacted, stable and well drained.
• The PlayPro™ trampoline edge must be installed on site. Installation time is approximately 15 minutes.
  A separate installation guide is included.
• An installation manual is included with the product.

The illustration shows a cross-section of a mounted trampoline:

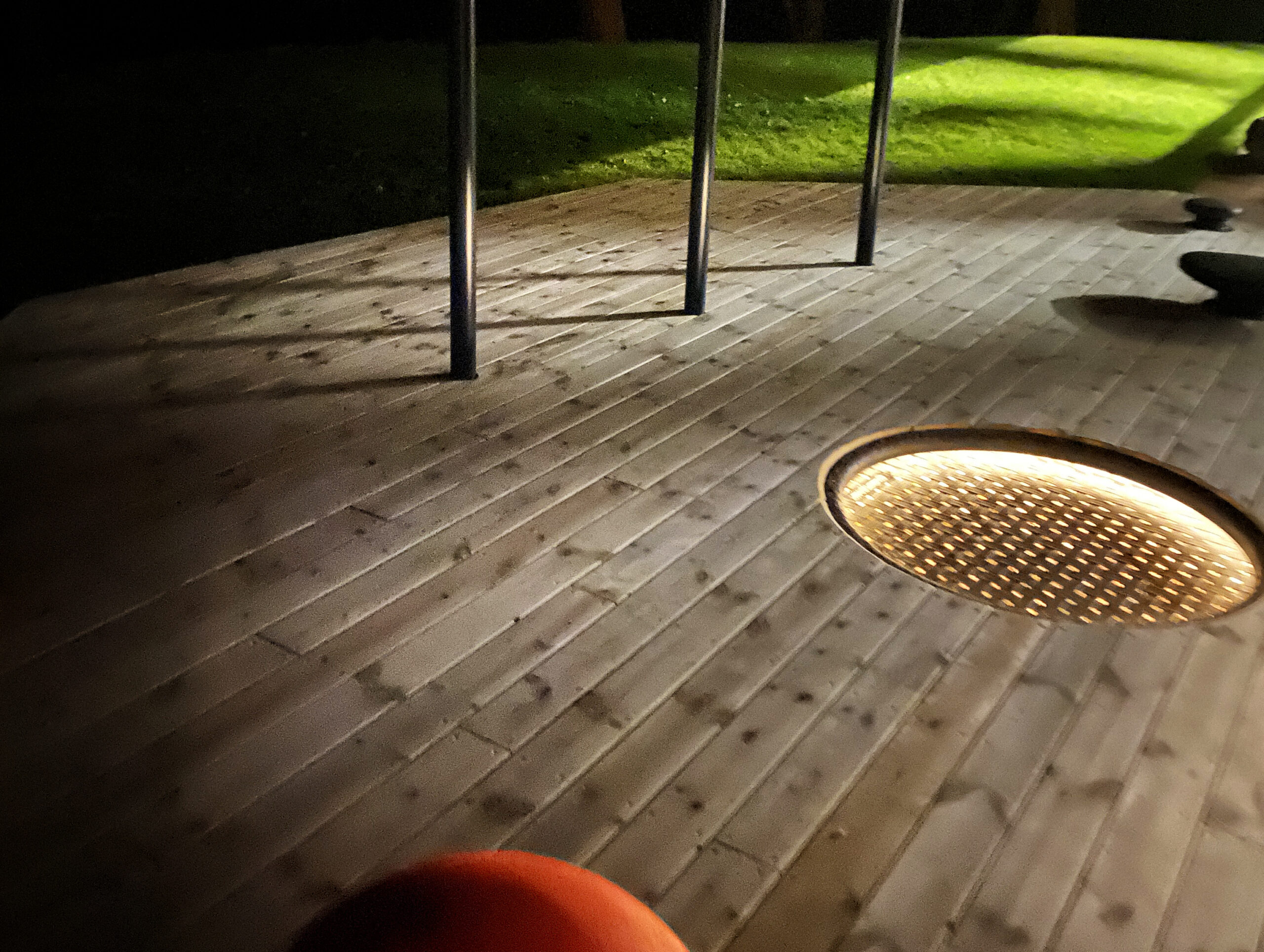

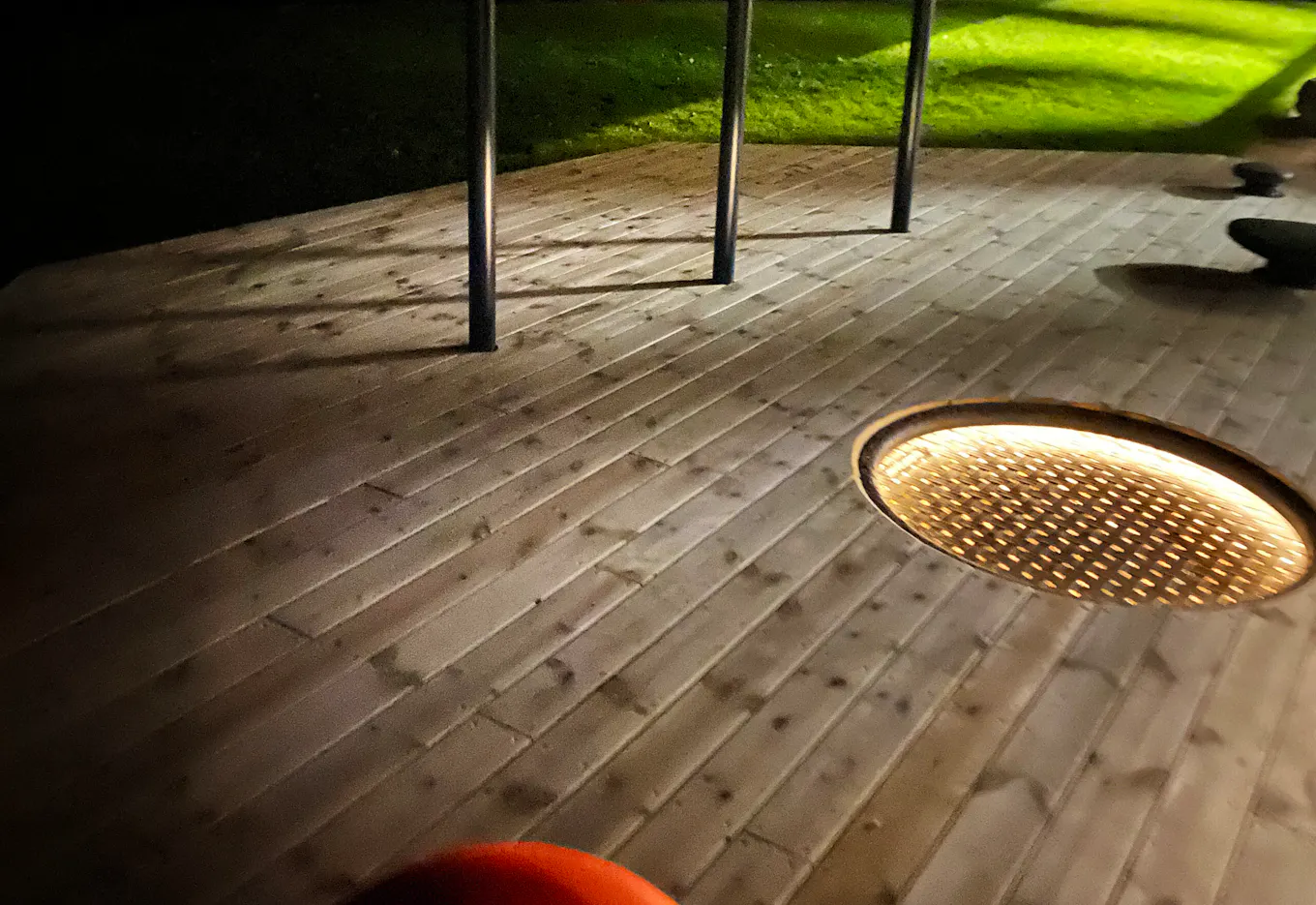

TRAMPOLINE with integrated mood lighting

The Kids Tramp Playground Loop and Square trampolines can be delivered with optional dimmable LED-lighting that makes them more visible in the ground at dusk and darkness, appearing as delightful spots of light. The continous lightsource distributes the light evenly in a spread of 180 degrees. The system is robust and powerful, designed for outdoor use in public areas.

The light is delivered mounted in the trampoline with junction box and cable.

Technical

• 24 Volts
• 40w
• IP67
• Transformer location alternatives:
  1) Transformer located in a cabinet max 12 m from the trampoline.
  2) Transformer located inside the trampoline suspension frame
• OAM is included

PDF

For Kids Tramp Playground Loop and Square Models with PlayPro™

Mounting instructions

For Kids Tramp Playground Loop and Square

Technical files

The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no

2D | DWG

3D | DWG

BIM | IFC
