Rampball®

MATERIALS, QUALITY AND DURABILITY

• All parts are designed for long-term outdoor use.
• All steel parts are hot-galvanized and/or powder coated.

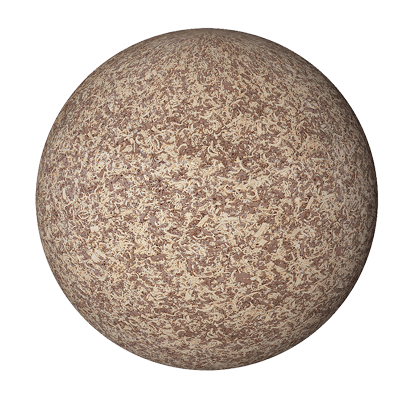

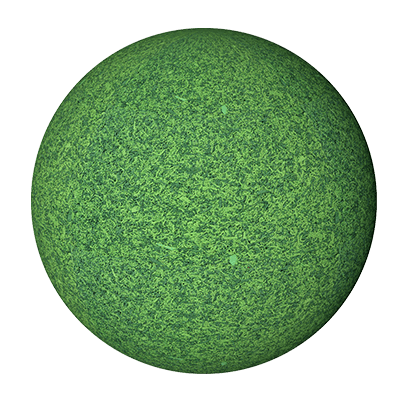

• The ball have an outer layer of EPDM.
• The core is made of recycled rubber.
• A flange of natural rubber covers the spring and mounting hole.
• Operations, administration and maintenance documentation is provided at delivery.

Mounting on different ground covers

Artificial grass/wet pour ground covers (rubber/cork etc.)

Grass/loose-fill covers (wood chips, sand etc.)

ShockDeck™

Suitable ground covers

• Wet pour ground covers, artificial grass, grass, sand, wood chips
• Please specify the intended ground cover when ordering or enquiring.

SAFETY AREA

• The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5)
• Ground covers with shock absorbing properties for a fall height of up to 100 cm should be used in the safety area.
• The safety area can overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)
• Several Rampballs can be placed in a group (ref EN 1176-1: 2017 / 3.20)

fall height

• Rampball®70 – 70 cm   /  Rampball®50 – 51 cm  / Rampball®35 – 36 cm

MOUNTING

• Rampball is delivered ready for mounting on a concrete foundation. Expansion bolts are included.
• The required thickness of the concrete foundation is 20 cm. When the foundation for multiple units is casted in one piece the required thickness is 15 cm.
• When mounting on grass and loose fill ground covers an optional extender will be needed to allow for 21.5 cm (grass) or 30 cm (loose fill) mounting depth.
• Mounting time approx. 45 min for 1 person (2 persons are needed for Rampball®70R).
• Installation instructions are included.
• See instructional video for mounting

SAFETY

• Certified according to EN 1176-1:2017 (playground equipment) and EN 16630 (outdoor fitness equipment)
• To avoid potential pinching the spring is protected with a rubber flange.

RAMPBALLS PLACED IN CLUSTERS

What distances should one choose when multiple balance balls are placed in a group? Here’s some advice:

• The minimum required distance between balls is calulated by adding maximum tilts of ball 1 and 2 to the skull standard width (23 cm).
• For children up to about 6 years of age, the balls should be placed at the minimum required distance to make it possible to jump from one ball to the next without stepping on the ground.
• For older children, the distances can be increased slightly.
• If there are 3 or more balls in a group, one should strive for variation in the distances.
• Varied distances create more variation in the play in terms of challenge and degree of difficulty. This makes the setup suitable for a wider age group.
• The balls can be placed in a row to form an obstacle course, or in clusters.
• When multiple balls are placed in a circle they can also act as a seating area.

We are happy to assist you with advice for designing an exciting motor skill park adapted to the relevant age group. Please contact us.

The plan below shows setup including Rampball®70, Rampball®50 and Rampball®35 and the minimum required distances between devices (center to center), as well as the 150 cm safety area.

PDF

Mounting instructions

Technical files

The links will open Google Drive folders where you can choose to download the desired product variant.
– Technical files include safety areas
– 3D DWG also includes foundations below ground level
– BIM files additionally include relevant information and links to downloadable documents
If you are missing anything, please contact us at contact@rampline.no

2D | DWG

3D | DWG

BIM | IFC

Please note that colour representation on screen and in print may differ slightly from the actual product.

* Only for Rampball 35, 50 og 50R
