Rampball®

Mounting on different ground covers

Suitable ground covers

• Wet pour ground covers, artificial grass, grass, sand, wood chips
• Please specify the intended ground cover when ordering or enquiring.

SAFETY AREA

• The required extent of the safety area around the equipment is 150 cm (ref EN 1176-1: 2017 / 4.2.8.2.5)
• Ground covers with shock absorbing properties for a fall height of up to 100 cm should be used in the safety area.
• The safety area can overlap with other equipment (ref EN 1176-1: 2017 / 4.2.8.2.5)
• Several Rampballs can be placed in a group (ref EN 1176-1: 2017 / 3.20)

fall height

• 100 cm (all Rampball versions/sizes)

MOUNTING

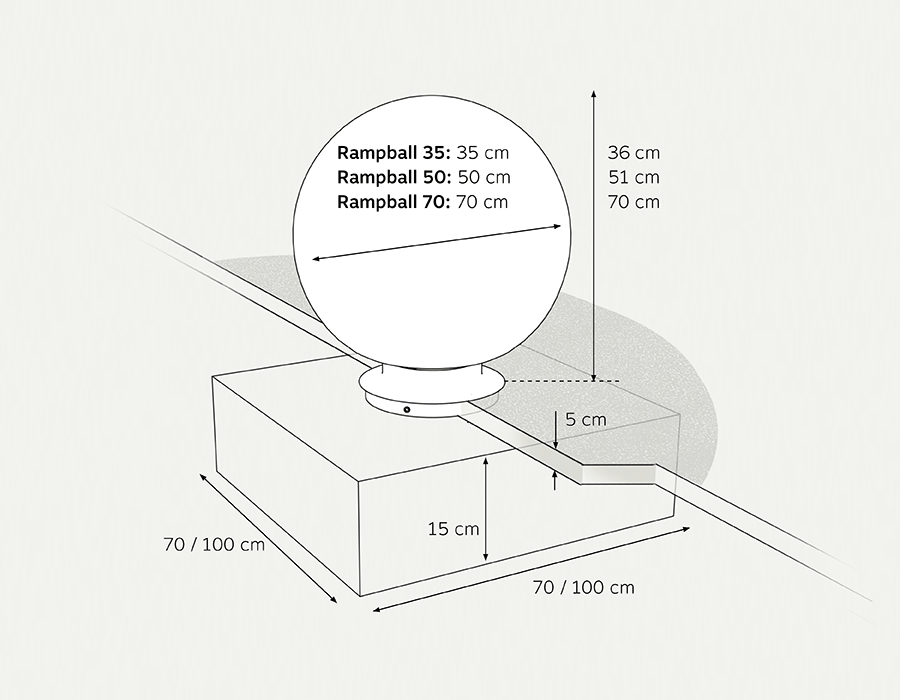

• Rampball is delivered ready for mounting on a concrete foundation. Expansion bolts are included.
• The required thickness of the concrete foundation is 20 cm. When the foundation for multiple units is casted in one piece the required thickness is 15 cm.
• When mounting on grass and loose fill ground covers an optional extender will be needed to allow for 21.5 cm (grass) or 30 cm (loose fill) mounting depth.
• Mounting time approx. 45 min for 1 person (2 persons are needed for Rampball®70R).
• Installation instructions are included.
• See instructional video for mounting

SAFETY

• Certified by TÜV according to:
  – Playground equipment EN 1176-1:2017
  – Permanently installed outdoor fitness equipment EN 16630
• To avoid potential pinching the spring is protected with a rubber flange.

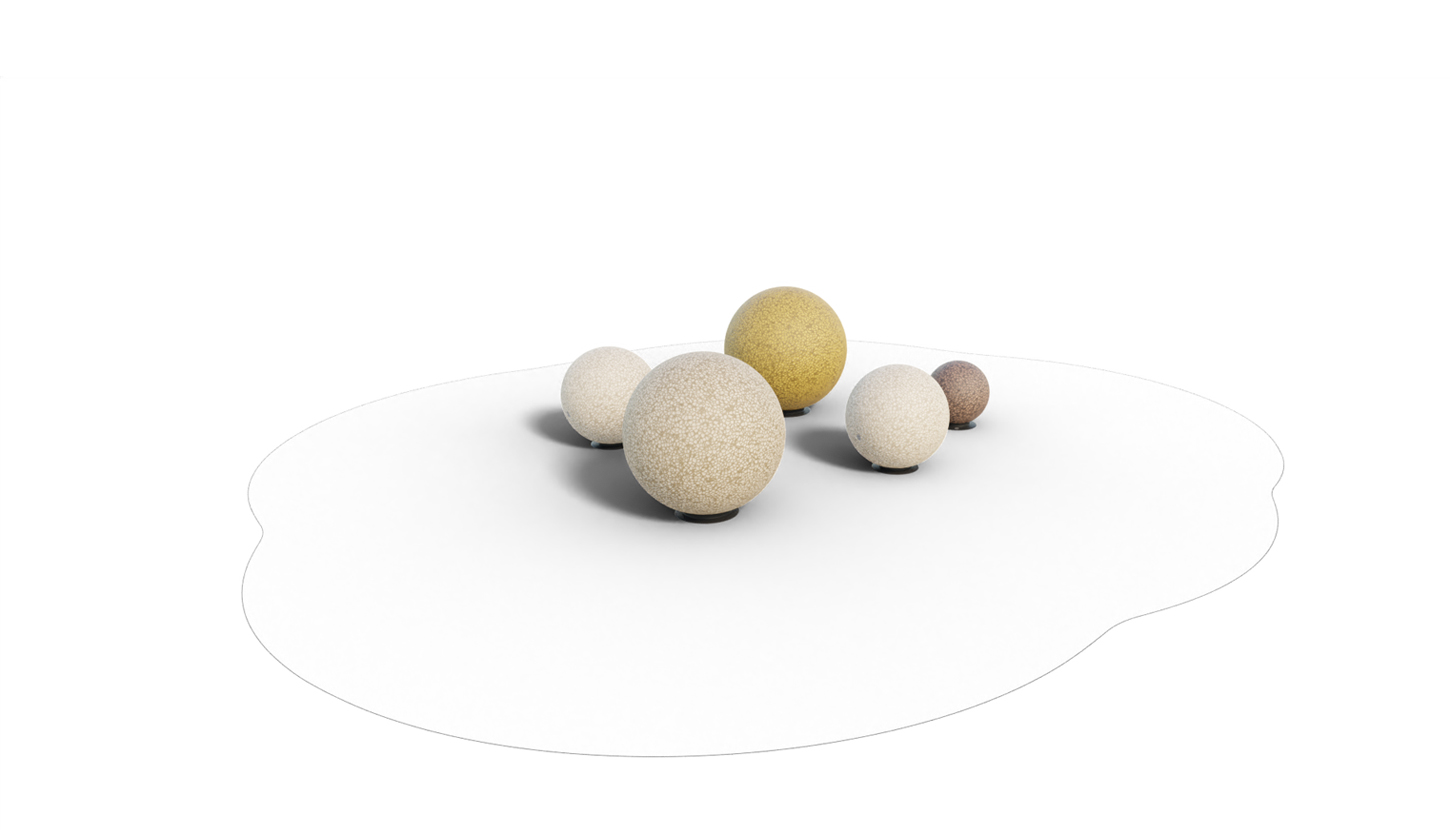

RAMPBALLS PLACED IN CLUSTERS

What distances should one choose when multiple balance balls are placed in a group? Here’s some advice:

• The minimum required distance between balls is calulated by adding maximum tilts of ball 1 and 2 to the skull standard width (23 cm).
• For children up to about 6 years of age, the balls should be placed at the minimum required distance to make it possible to jump from one ball to the next without stepping on the ground.
• For older children, the distances can be increased slightly.
• If there are 3 or more balls in a group, one should strive for variation in the distances.
• Varied distances create more variation in the play in terms of challenge and degree of difficulty. This makes the setup suitable for a wider age group.
• The balls can be placed in a row to form an obstacle course, or in clusters.
• When multiple balls are placed in a circle they can also act as a seating area.

We are happy to assist you with advice for designing an exciting motor skill park adapted to the relevant age group. Please contact us.

The plan below shows setup including Rampball 70, Rampball 50 and Rampball 35 and the minimum required distances between devices (center to center), as well as the 150 cm safety area.
